MP-04-02-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/4" Hose Barb x 1/8" Male NPTF | Carbon Steel

MP-04-02-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/4" Hose Barb x 1/8" Male NPTF | Carbon Steel

Save $2.24 Save $2.24
$5.60
$5.60 - $5.60
$5.60
$3.36
$3.36 - $3.36
$3.36

Kurt Hydraulics
Male Pipe NPTF Rigid
Specifications for Variant SKU: MP-04-02-K2 Kurt
Series: K2 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/8in Male NPTF
Material(s): Carbon Steel

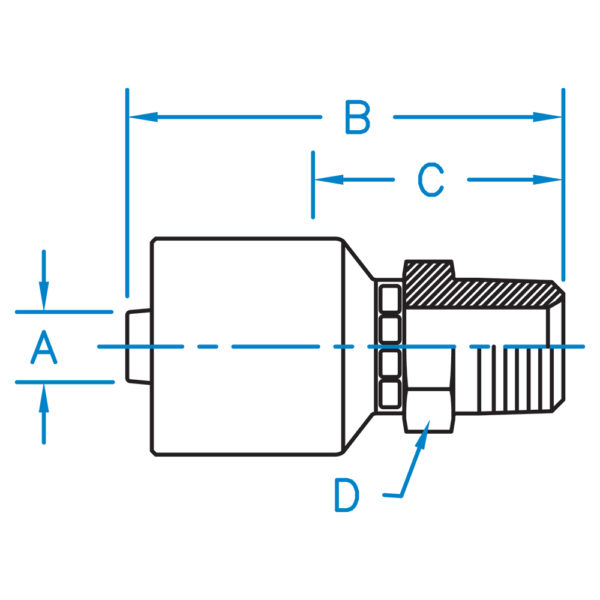

Part Number Hose I.D. (in.) B C D Thread
MP-04-02-K2 1/4" 1.85" 0.79" 9/16" 1/8"-27
MP-04-04-K2 1/4" 2.03" 0.97" 9/16" 1/4"-18
MP-04-06-K2 1/4" 2.13" 1.07" 11/16" 3/8"-18
MP-04-08-K2 1/4" 2.31" 1.255" 7/8" 1/2"-14
MP-06-04-K2 3/8" 2.45" 1.08" 11/16" 1/4"-18
MP-06-06-K2 3/8" 2.22" 0.99" 3/4" 3/8"-18
MP-06-08-K2 3/8" 2.49" 1.26" 7/8" 1/2"-14
MP-08-06-K2 1/2" 2.39" 1.08" 7/8" 3/8"-18
MP-08-08-K2 1/2" 2.64" 1.30" 7/8" 1/2"-14
MP-08-12-K2 1/2" 2.71" 1.37" 1-1/16" 3/4"-14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
