MP-12-16-SST by Kurt Hydraulics | Jump Size | Male Pipe NPTF | PTFE Coupling | for 3/4" Hose ID

MP-12-16-SST by Kurt Hydraulics | Jump Size | Male Pipe NPTF | PTFE Coupling | for 3/4" Hose ID

Save $12.18 Save $12.18
$30.45
$30.45 - $30.45
$30.45
$18.27
$18.27 - $18.27
$18.27

by Kurt Hydraulics
MP-SST - Male Pipe NPTF Rigid - PTFE Couplings

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MP-12-16-SST Kurt
Series: SST Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 1in Male NPTF
Special Properties: Jump Size

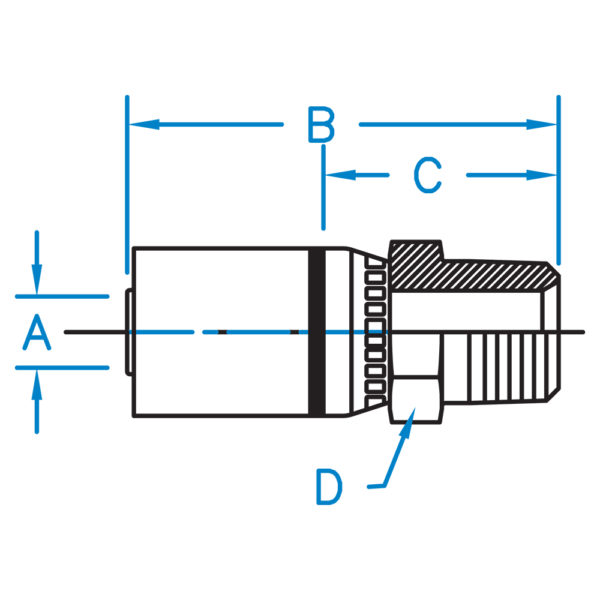

Part Number A B C D Hose ID
(In)		 Thread
MP-03-02-SST 0.187 1.930 0.870 9/16 3/16" 1/8-27
MP-03-04-SST 0.187 1.606 0.940 9/16 3/16" 1/4-18
MP-04-04-SST 0.250 2.310 1.250 9/16 1/4" 1/4-18
MP-05-04-SST 0.312 2.370 1.060 5/8 5/16" 1/4-18
MP-05-06-SST 0.312 2.459 1.149 11/16 5/16" 3/8-18
MP-06-06-SST 0.375 2.592 1.125 3/4 3/8" 3/8-18
MP-06-08-SST 0.375 2.917 1.417 7/8 3/8" 1/2-14
MP-07-06-SST 0.437 2.530 1.060 3/4 7/16" 3/8-18
MP-07-08-SST 0.437 2.871 1.401 7/8 7/16" 1/2-14
MP-08-08-SST 0.500 3.031 1.375 15/16 1/2" 1/2-14
MP-10-08-SST 0.625 3.031 1.375 15/16 5/8" 1/2-14
MP-10-12-SST 0.625 3.220 1.375 1-1/8 5/8" 3/4-14
MP-12-08-SST N/A N/A N/A N/A N/A N/A
MP-12-12-SST 0.750 3.220 1.375 1-1/8 3/4" 3/4-14
MP-12-16-SST 0.750 3.969 1.562 1-3/8 3/4" 1-11-1/2
MP-16-12-SST 1.000 3.450 1.375 1-3/8 1.000" 3/4-14
MP-16-16-SST 1.000 3.969 1.562 1-3/8 1.000" 1-11-1/2

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
