MP-32-32-W by Kurt Hydraulics | Male Pipe NPTF | Rigid | for 2" Hose ID

MP-32-32-W by Kurt Hydraulics | Male Pipe NPTF | Rigid | for 2" Hose ID

Save $48.37 Save $48.37
$120.92
$120.92 - $120.92
$120.92
$72.55
$72.55 - $72.55
$72.55
by Kurt Hydraulics
MP-W - Male Pipe NPTF Rigid
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MP-32-32-W Kurt
Series: W Series
Shape (Orientation): Straight
Ends Configuration: 2in Hose Barb, 2in Male NPTF
Special Properties: Rigid

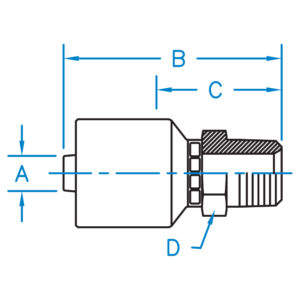

Part Number A B C D Hose ID
(In)		 Thread
MP-06-04-W 0.375 2.454 1.084 11/16 3/8" 1/4-18
MP-06-06-W 0.375 2.220 0.990 3/4 3/8" 3/8-18
MP-06-08-W 0.375 2.490 1.260 7/8 3/8" 1/8-14
MP-08-06-W 0.500 2.390 1.078 7/8 1/2" 3/8-18
MP-08-08-W 0.500 2.640 1.300 7/8 1/2" 1/2-14
MP-08-12-W 0.500 2.710 1.370 1-1/16 1/2" 3/4-14
MP-10-06-W 0.625 3.310 1.210 7/8 5/8" 3/8-18
MP-10-08-W 0.625 3.320 1.360 7/8 5/8" 1/2-14
MP-10-12-W 0.625 3.190 1.430 1-1/16 5/8" 3/4-14
MP-12-08-W 0.750 3.295 1.416 1-1/8 3/4" 1/2-14
MP-12-12-W 0.750 3.190 1.400 1-1/16 3/4" 3/4-14
MP-12-16-W 0.750 3.390 1.610 1-3/8 3/4" 1-11-1/2
MP-16-12-W 1.000 3.514 1.416 1-3/8 1.000" 3/4-14
MP-16-16-W 1.000 3.730 1.620 1-3/8 1.000" 1-11-1/2
MP-16-16-W-API 1.000 4.720 2.610 1-3/8 1.000" 1-11-1/2
MP-16-20-W 1.000 3.800 1.690 1-11/16 1.000" 1-1/4 - 11-1/2
MP-20-20-W 1.250 4.150 1.700 1-11/16 1-1/4" 1-1/4 - 11-1/2
MP-20-24-W 1.250 4.260 1.810 2.000 1-1/4" 1-1/2 - 11-1/2
MP-24-24-W 1.500 4.480 1.510 2.000 1-1/2" 1-1/2 - 11-1/2
MP-32-32-W 2.000 5.410 2.160 2-1/2 2.000" 2 - 11-1/2
MP-32-32-W-API 2.000 7.560 4.310 2-1/2 2.000" 2 - 11-1/2


Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
