MPX-04-02 by Kurt Hydraulics | Jump Size | Male Pipe NPTF | Swivel | for 1/4" Hose ID

MPX-04-02 by Kurt Hydraulics | Jump Size | Male Pipe NPTF | Swivel | for 1/4" Hose ID

Save $3.67 Save $3.67
$9.18
$9.18 - $9.18
$9.18
$5.51
$5.51 - $5.51
$5.51
by Kurt Hydraulics
MPX - Male Pipe NPTF Swivel
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MPX-04-02 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/8in Male NPTF
Special Properties: Swivel, Jump Size

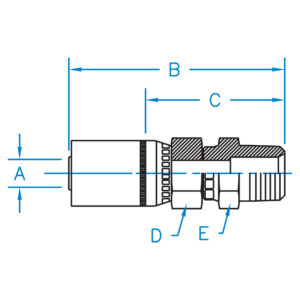

Part Number A B C D E Hose ID
(In)		 Thread
MPX-04-02 0.250 2.590 1.335 9/16 1/2 1/4" 1/8-27
MPX-04-04 0.250 2.875 1.620 9/16 11/16 1/4" 1/4-18
MPX-04-06 0.250 2.880 1.625 9/16 3/4 1/4" 3/8-18
MPX-06-04 0.375 3.196 1.672 11/16 11/16 3/8" 1/4-18
MPX-06-06 0.375 3.201 1.706 11/16 3/4 3/8" 3/8-18
MPX-06-08 0.375 3.401 1.896 11/16 7/8 3/8" 1/2-14
MPX-08-06 0.500 3.309 1.813 7/8 3/4 1/2" 3/8-18
MPX-08-08 0.500 3.533 2.037 7/8 15/16 1/2" 1/2-14
MPX-08-12 0.500 N/A N/A N/A N/A 1/2" 3/4-14
MPX-10-08 0.625 N/A N/A N/A N/A 5/8" 1/2-14
MPX-10-12 0.625 N/A N/A N/A N/A 5/8" 3/4-14
MPX-12-12 0.750 3.695 2.102 1-1/8 1-1/8 3/4" 3/4-14
MPX-16-16 1.000 4.115 2.381 1-3/8 1-1/2 1.000" 1-11-1/2


Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
