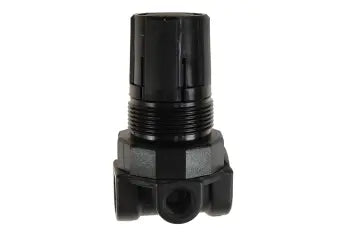

MR1-P by Coilhose | 1/8" Miniature Series Regulator | 0-125 PSI | Zinc Die Cast Range | Panel Mount | 250 PSI | Zinc Die Cast

MR1-P by Coilhose | 1/8" Miniature Series Regulator | 0-125 PSI | Zinc Die Cast Range | Panel Mount | 250 PSI | Zinc Die Cast

Save $3.66 Save $3.66
$32.92
$32.92 - $32.92
$32.92
$29.26
$29.26 - $29.26
$29.26
Coilhose Pneumatics - Miniature Series - Miniature Series Regulators
Specifications for Variant SKU: MR1-P Coilhose
Material(s): Plastic, Zinc Die Cast
Special Properties: Mini/Micro Size
Overview:
  • The Miniature Series Regulators are designed for applications where space is limited and flow requirements are low. They excel in control panels and miniature circuitry. Each unit can be disassembled by hand for easy maintenance.
Features:
  • Reliable low friction "U" cup piston seal.
  • 1/8" gauge ports can be used for secondary outlets.
  • Built in self-relieving feature prevents excessive downstream pressure build-up.
  • Adjusting knob locks in place to maintain pressure setting.
Specifications:
  • Maximum Supply Pressure: 250 PSI
  • Maximum Operating Temp.: 250° F
  • Materials:
    • Adjusting Knob: High-Impact Plastic
    • Body: Zinc Die Cast
  • Height: 2-7/8"
  • Maximum Diameter: 1-1/2"
  • Weight: 0.55 oz.
  • Regulator Pressure Ranges:
    • 0-125 - Standard
    • 0-50 - Optional
    • 0-20 - Optional

Supply 100 PSI Regulated Pressure Pressure Drop
5 10 15
25 4 SCFM 8 SCFM 11 SCFM
50 3 SCFM 9 SCFM 11 SCFM
75 2 SCFM 6 SCFM 9 SCFM
Note: All values are approximate.

Part Number Port Size Gauge Panel Mount Pressure Range Max Pressure
MR1 1/8" No No 0-125 PSI 250 PSI
MR1-P 1/8" No Yes 0-125 PSI 250 PSI
MR1-L 1/8" No No 0-50 PSI 250 PSI
MR1-J 1/8" No No 0-20 PSI 250 PSI
MR1-G 1/8" Yes No 0-125 PSI 250 PSI
MR1-GP 1/8" Yes Yes 0-125 PSI 250 PSI
MR1-GL 1/8" Yes No 0-50 PSI 250 PSI
MR1-GJ 1/8" Yes No 0-20 PSI 250 PSI
MR1-GLP 1/8" Yes Yes 0-50 PSI 250 PSI
MR1-GJP 1/8" Yes Yes 0-20 PSI 250 PSI
MR1-G-CS* 1/8" Yes No 0-125 PSI 250 PSI

MR2 1/4" No No 0-125 PSI 250 PSI
MR2-L 1/4" No No 0-50 PSI 250 PSI
MR2-J 1/4" No No 0-20 PSI 250 PSI
MR2-G 1/4" Yes No 0-125 PSI 250 PSI
MR2-P 1/4" No Yes 0-125 PSI 250 PSI
MR2-JP 1/4" No Yes 0-20 PSI 250 PSI
MR2-LP 1/4" No Yes 0-50 PSI 250 PSI
MR2-GP 1/4" Yes Yes 0-125 PSI 250 PSI
MR2-GL 1/4" Yes No 0-50 PSI 250 PSI
MR2-GJ 1/4" Yes No 0-20 PSI 250 PSI
MR2-DL 1/4" No No 0-125 PSI 250 PSI
MR2-GJP 1/4" Yes Yes 0-20 PSI 250 PSI
MR2-G-CS* 1/4" Yes No 0-125 PSI 250 PSI
* Clamshell Packaging
