MS-06-06 by Kurt Hydraulics | Male SAE 45 Degree | Rigid | for 3/8" Hose ID

Name: MS-06-06 by Kurt Hydraulics | Male SAE 45 Degree | Rigid | for 3/8" Hose ID
Brand: Kurt Hydraulics
SKU: MS-06-06 Kurt
Price: 6.92 USD
Availability: InStock

Save $0.87

$7.79

$7.79 - $7.79

$7.79

$6.92

$6.92 - $6.92

$6.92

by Kurt Hydraulics
MS - 45 deg. SAE Male Rigid

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: MS-06-06 Kurt
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, 3/8in Male SAE 45 Flare
Special Properties:	Rigid

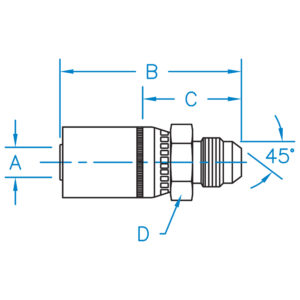

Part Number	A	B	C	D	Hose ID (In)	Thread
MS-04-04	0.250	2.300	1.045	9/16	1/4"	7/16-20
MS-04-06	0.250	2.518	1.270	11/16	1/4"	5/8-18
MS-05-05	0.312	2.355	1.045	5/8	5/16"	1/2-20
MS-06-06	0.375	2.725	1.225	3/4	3/8"	5/8-18
MS-06-08	0.375	2.762	1.262	3/4	3/8"	3/4-16
MS-08-08	0.500	2.845	1.345	7/8	1/2"	3/4-16
MS-12-12	0.750	3.354	1.761	1-1/8	3/4"	1-1/16-14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
