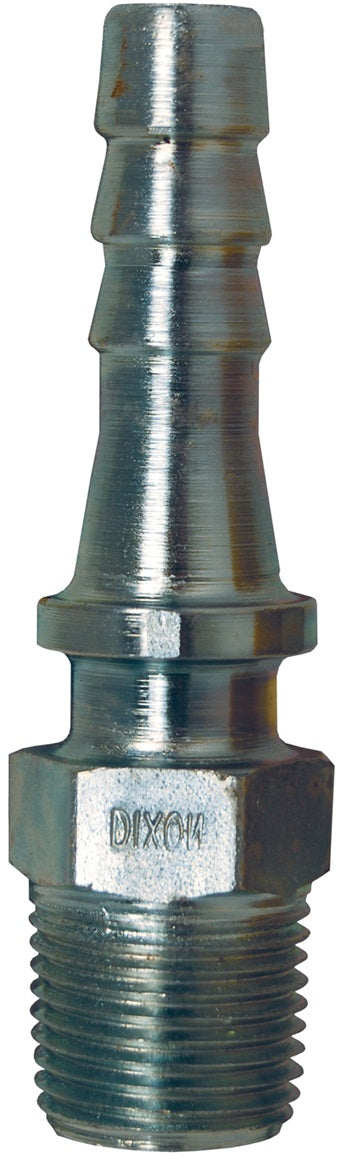

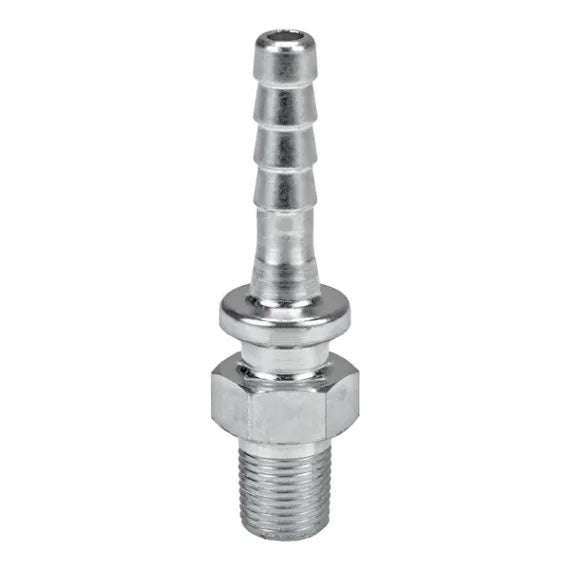

MS4X2 by Dixon Valve | Boss® Male Stem | 1/8" Male NPT x 1/4" Hose Barb | Plated Steel (Bar Stock)

Save $1.34 Save $1.34
Original price $12.07
Original price $12.07 - Original price $12.07
Original price $12.07
Current price $10.73
$10.73 - $10.73
Current price $10.73

Dixon Valve
Boss® | Male Stem

Boss couplings are all-purpose hose couplings, universally recommended for steam hose connections. They are also widely used for air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1" ID.

Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose.


Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: MS4X2 Dixon
Brand: Boss
Shape (Orientation): Straight
Ends Configuration: 1/8in Male NPT, 1/4in Hose Barb
Material(s): Steel
Material:
  • Plated Steel Bar Stock.
Use:
  • Use with Boss Clamps.
Specifications:
  • Recommended for steam service up to 450°F (232°C).
Safety Notes:
  • Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
  • Note. Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
Part Number Hose Barb x Male NPT Size
MS4X2 1/4" x 1/8"
MSA 1/4" x 1/4"
MSB 1/4" x 3/8"
MS6X4 3/8" x 1/4"
MSC 3/8" x 3/8"
MS6X8 3/8" x 1/2"
MS8X4 1/2" x 1/4"
MS8X6 1/2" x 3/8"
MS1 1/2" x 1/2"
MS8X12 1/2" x 3/4"
MS12X8 3/4" x 1/2"
MS6 3/4" x 3/4"
MS12X16 3/4" x 1"
MS16X12 1" x 3/4"
MS11 1" x 1"
