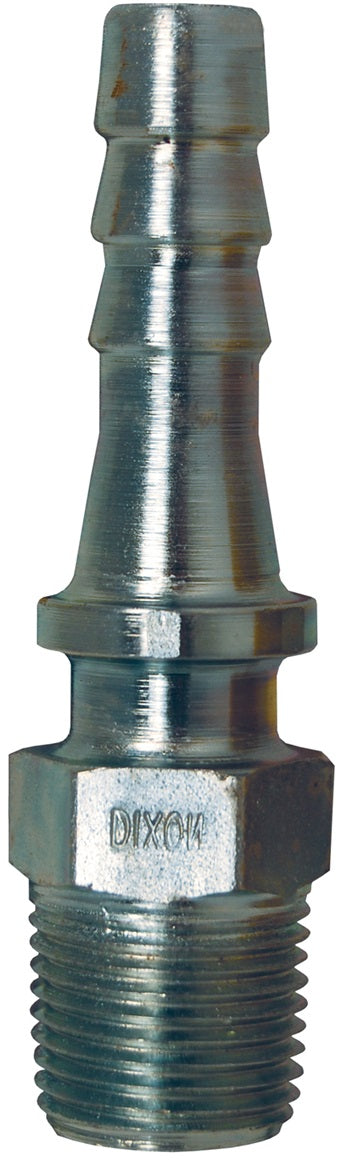

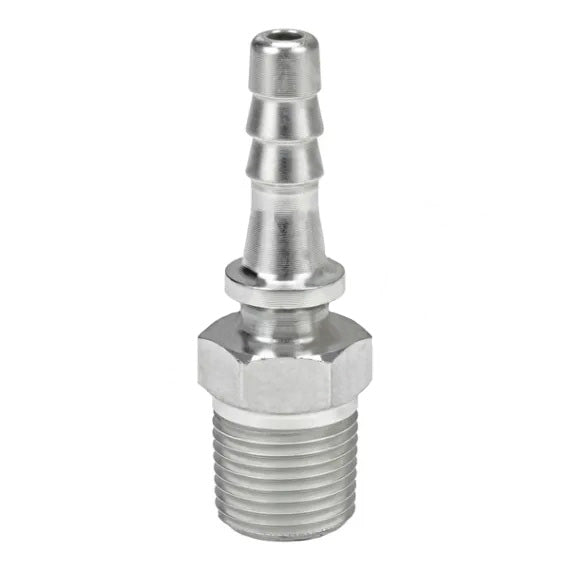

MS6X8 by Dixon Valve | Boss® Male Stem | 1/2" Male NPT x 3/8" Hose Barb | Plated Steel (Bar Stock)

MS6X8 by Dixon Valve | Boss® Male Stem | 1/2" Male NPT x 3/8" Hose Barb | Plated Steel (Bar Stock)

$8.90 - $8.90
$8.90
$10.24
$10.24 - $10.24
$10.24

Dixon Valve
Boss® | Male Stem

Boss couplings are all-purpose hose couplings, universally recommended for steam hose connections. They are also widely used for air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1" ID.

Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose.
Specifications for Variant SKU: MS6X8 Dixon
Brand: Boss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPT, 3/8in Hose Barb
Material(s): Steel
Material:
  • Plated Steel Bar Stock.
Use:
  • Use with Boss Clamps.
Specifications:
  • Recommended for steam service up to 450°F (232°C).
Safety Notes:
  • Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
  • Note. Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
Part Number Hose Barb x Male NPT Size
MS4X2 1/4" x 1/8"
MSA 1/4" x 1/4"
MSB 1/4" x 3/8"
MS6X4 3/8" x 1/4"
MSC 3/8" x 3/8"
MS6X8 3/8" x 1/2"
MS8X4 1/2" x 1/4"
MS8X6 1/2" x 3/8"
MS1 1/2" x 1/2"
MS8X12 1/2" x 3/4"
MS12X8 3/4" x 1/2"
MS6 3/4" x 3/4"
MS12X16 3/4" x 1"
MS16X12 1" x 3/4"
MS11 1" x 1"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
