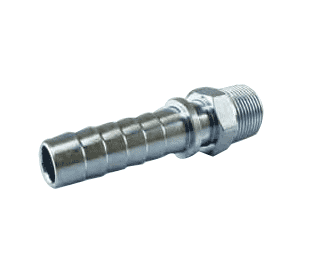

MS8-4 by Jason Industrial | Hex Air Hose Nipple | 1/2" Hose Shank x 1/4" Male NPT | Plated Steel

Name: MS8-4 by Jason Industrial | Hex Air Hose Nipple | 1/2" Hose Shank x 1/4" Male NPT | Plated Steel
Brand: Jason Industrial Inc
SKU: MS8-4 Jason
Price: 3.96 USD
Availability: InStock

Save $0.04

$4.00

$4.00 - $4.00

$4.00

$3.96

$3.96 - $3.96

$3.96

Jason Industrial Inc. Couplings & Accessories - Nipples & Accessories - Hex Air Hose Nipples - Male NPT x Hose Shank - Plated Steel

Quantity

Specifications for Variant SKU: MS8-4 Jason
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, 1/4in Male NPT
Material(s):	Plated Steel

Overview:
For air or many other applications, MS nipples are economical and reusable. The MS nipple accepts bands or clamps. However, each MS is especially designed with a collar behind the hex to engage the gripping fingers of an interlocking clamp. MS threads are NPT. Steel Plated. Use also as companion end of female ground joint.
Safety Warnings:
Please do not mix Jason Industrial couplings with other products.

Part Number	Hose Size	Thread Size
MS4-4	1/4"	1/4"
MS4-6	1/4"	3/8"
MS6-4	3/8"	1/4"
MS6-6	3/8"	3/8"
MS6-8	3/8"	1/2"
MS8-4	1/2"	1/4"
MS8-6	1/2"	3/8"
MS8-8	1/2"	1/2"
MS8-12	1/2"	3/4"
MS12-8	3/4"	1/2"
MS12-12	3/4"	3/4"
MS12-16	3/4"	1"
MS16-12	1"	3/4"
MS16-16	1"	1"
MS20-20	1-1/4"	1-1/4"
MS24-24	1-1/2"	1-1/2"
MS32-32	2"	2"
MS40-40	2-1/2"	2-1/2"
MS48-48	3"	3"
MS64-64	4"	4"

Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
