MT-12-12-W by Kurt Hydraulics | Flareless Compression with Nut and Sleeve Per SAE J514 | 3/4" Hose ID

MT-12-12-W by Kurt Hydraulics | Flareless Compression with Nut and Sleeve Per SAE J514 | 3/4" Hose ID

Save $18.42 Save $18.42
$46.05
$46.05 - $46.05
$46.05
$27.63
$27.63 - $27.63
$27.63
by Kurt Hydraulics
MT-W - Flareless Compression with Nut and Sleeve Per SAE J514
Specifications for Variant SKU: MT-12-12-W Kurt
Series: W Series
Shape (Orientation): Straight

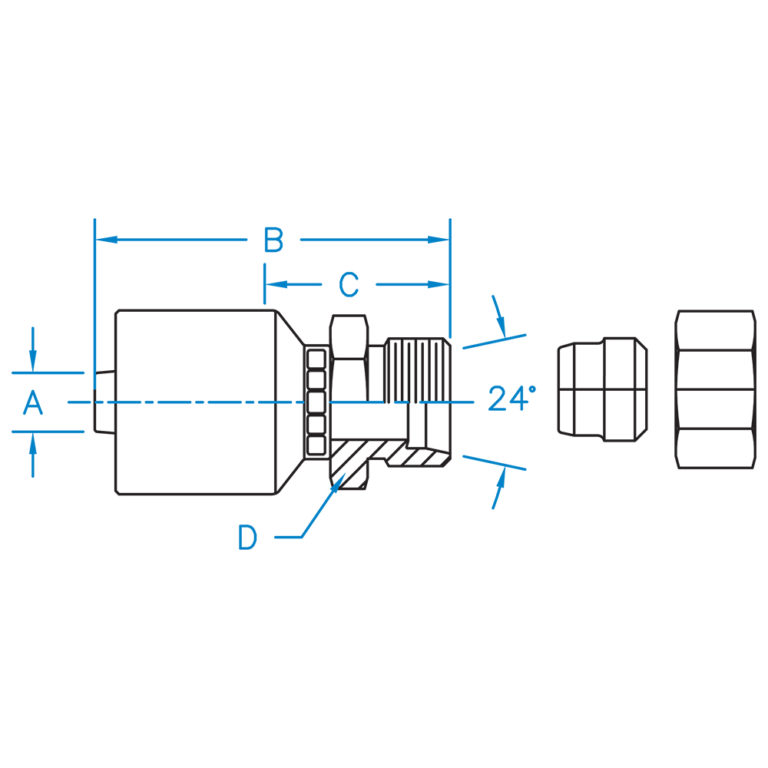

Part Number A B C D Hose ID
(In)		 Thread
MT-06-05-W 0.375 2.228 0.858 11/16 3/8" 1/2-20
MT-06-06-W 0.375 2.083 0.853 3/4 3/8" 9/16-18
MT-06-08-W 0.375 2.368 0.998 3/4 3/8" 3/4-16
MT-08-08-W 0.500 2.393 1.053 7/8 1/2" 3/4-16
MT-08-10-W 0.500 2.456 1.116 7/8 1/2" 7/8-14
MT-12-12-W N/A N/A N/A N/A N/A N/A
MT-16-16-W N/A N/A N/A N/A N/A N/A


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
