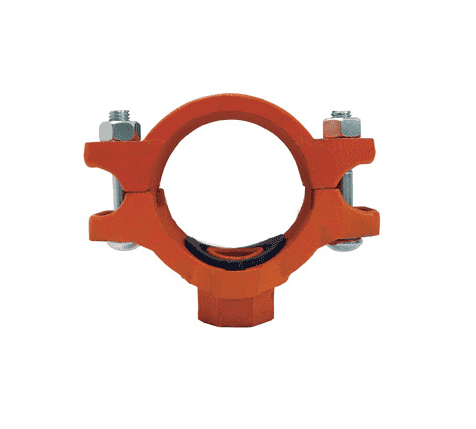

MT4010 Dixon Ductile Iron Mechanical Tee - Series T - 4" Nominal Size - 1" Branch Size

MT4010 Dixon Valve Ductile Iron Mechanical Tee - Series T - 4" Nominal Size - 1" Branch Size

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Pipe & Welding Fittings - Mechanical Tees - Series T - Ductile Iron

Specifications for Variant SKU: MT4010 Dixon
Material(s): Ductile Iron
Seal Material(s): EPDM
Applications:
  • Provides a fast easy way to install a threaded connection along a length of pipe. After drilling or cutting a hole in the pipe at the location of the branch connection, simply attach the clamps around the pipe for a leak-free threaded outlet connection.
Features:
  • Ductile iron body with rust inhibiting paint.
  • Underwriters Listed and Factory Mutual approved.
  • maximum working pressure: 300 PSI at 70 deg. F.
  • Comparable to:
    • Victaulic's #920
    • Grinnell's #7045
  • For replacement gaskets, nuts, and bolts see: Pipe and Welding Accessories
Dimensions:
Part Number Nominal Size Branch Size Hole Saw Diameter Maximum End Load (Lbs.) Coupling Dimensions Bolts Weight (Lbs.)
A B C D E Qty Size Length
MT2010 2" 1" 1-1/2" 1-5/8" 5-1/16" 1-1/2" 2-3/4" 2-5/8" 1-7/8" 2 3/8" 2" 2.4000
MT20125 2" 1-1/4" 1-3/4" 1-7/8" 5-1/16" 1-1/2" 2-15/16" 2-3/4" 1-7/8" 2 3/8" 2" 2.4000
MT20150 2" 1-1/2" 1-3/4" 1-7/8" 5-1/16" 1-1/2" 2-15/16" 2-3/4" 1-7/8" 2 3/8" 2" 2.4000
MT25010 2-1/2" 1" 1-1/2" 1-5/8" 5-5/32" 1-11/16" 3" 2-31/32" 2" 2 1/2" 2-5/8" 2.4500
MT250125 2-1/2" 1-1/4" 2" 2-1/8" 5-13/16" 1-11/16" 3-11/32" 3" 2" 2 1/2" 2-5/8" 3.6500
MT3010 3" 1" 1-1/2" 1-5/8" 6-11/32" 2-1/8" 3-3/32" 3-1/16" 2" 2 1/2" 2-3/4" 3.6500
MT30150 3" 1-1/2" 2" 2-1/8" 6-11/32" 2-1/8" 3-3/4" 3-3/8" 2" 2" 1/2 2-3/4" 4.2000
MT4010 4" 1" 1-1/2" 1-5/8" 7-5/16" 2-9/16" 3-3/32" 3-1/2" 2" 2 1/2" 2-3/4" 4.1500
MT40125 4" 1-1/4" 2" 2-1/8" 7-5/16" 2-9/16" 3-3/4" 3-7/8" 2" 2 1/2" 2-3/4" 4.9550
MT40150 4" 1-1/2" 2" 2-1/8" 7-5/16" 2-9/16" 3-3/4" 3-7/8" 2" 2 1/2" 2-3/4" 4.9000
MT4020 4" 2" 2-1/2" 2-5/8" 7-5/16" 2-9/16" 4-1/8" 4" 2" 2 1/2" 2-3/4" 5.2000
MT40250 4" 2-1/2" 2-3/4" 2-7/8" 7-5/16" 2-9/16" 4-3/8" 4" 2" 2 1/2" 2-3/4" 5.6450
MT4030 4" 3" 3-1/2" 3-5/8" 7-5/16" 2-9/16" 5-1/4" 4-1/4" 2" 2 1/2" 2-3/4" 7.6250
MT60125 6" 1-1/4" 2-1/2" 2-5/8" 10-5/32" 3-11/16" 4-1/8" 4-7/8" 2-1/4" 2 5/8" 3-1/4" 8.5500
MT60150 6" 1-1/2" 2-1/2" 2-5/8" 10-5/32" 3-11/16" 4-1/8" 4-7/8" 2-1/4" 2 5/8" 3-1/4" 8.2000
MT6020 6" 2" 2-1/2" 2-5/8" 10-5/32" 3-11/16" 4-1/8" 5" 2-1/4" 2 5/8" 3-1/4" 8.4500
MT6030 6" 3" 3-1/2" 3-5/8" 10-5/32" 3-11/16" 5-1/4" 5-3/8" 2-1/4" 2 5/8" 3-1/4" 10.6500
