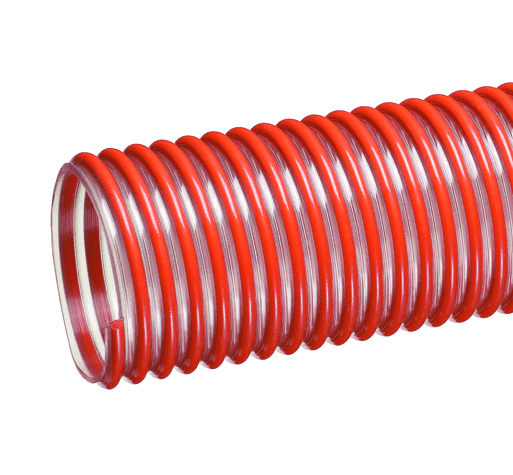

MULCH400X100 Tigerflex by Kuriyama | MULCH Series | Heavy Duty Material Handling Hose | 4" ID | PVC | 100ft Length

MULCH400X100 Tigerflex by Kuriyama | MULCH Series | Heavy Duty Material Handling Hose | 4" ID | PVC | 100ft Length

Save $103.41 Save $103.41
$1,034.08
$1,034.08 - $1,034.08
$1,034.08
$930.67
$930.67 - $930.67
$930.67

Kuriyama Tigerflex MULCH™ Series Heavy Duty PVC Low Temperature Material Handling Mulch Hose


Package Quantity: 100 FT

Specifications for Variant SKU: MULCH400X100 Kuriyama | 100 |
Brand: Tigerflex
Series: MULCH Series
Hose Color(s): Red & Clear/Semi-Clear
Internal Diameter: 4in
Outer Diameter: 4.57in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Material handling - standard duty, Soil, seed and compost delivery, Mulch, bark, wood chips and other surfacing material delivery SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Abrasion Resistant PVC Tube - Formulated from highly durable PVC compounds for increased abrasion and tear resistance versus standard PVC hoses.
  • Convoluted Outer Cover - Provides increased hose flexibility.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
MULCH400X100 4" 101.6mm 4.57" 116.0mm 35 PSI 15 PSI Full 28 in. Hg 8" 100ft 1.35 lbs
MULCH500X100 5" 127.0mm 5.61" 142.6mm 30 PSI 12 PSI 24 in. Hg 22 in. Hg 14" 100ft 1.75 lbs
MULCH600X100 6" 153.4mm 6.79" 172.4mm 25 PSI 10 PSI 24 in. Hg 22 in. Hg 16" 100ft 2.42 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
