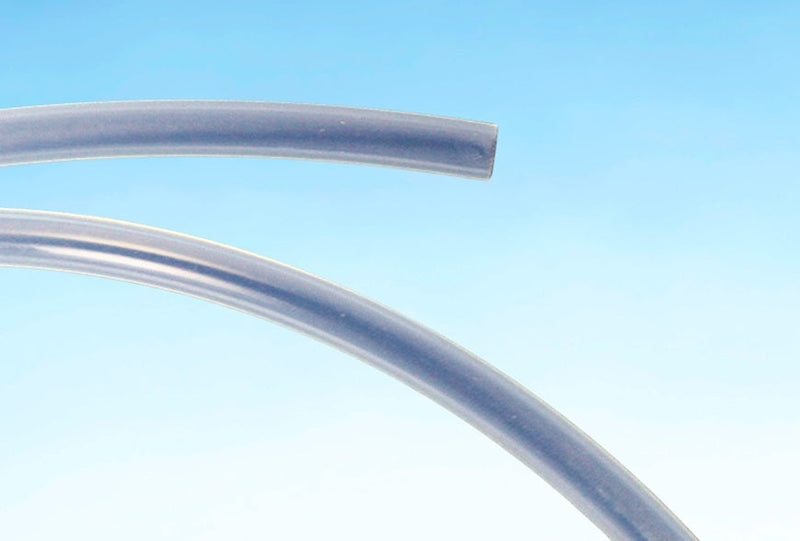

MUS1000-0250-062-50 Versilon™ by Saint Gobain | 1/8" I.D. x 1/4" O.D. x 1/16" Wall | MUS-1000 Tubing | 50' Package Length

Original price $221.33 - Original price $221.33
Original price
$221.33
$221.33 - $221.33
Current price $221.33

Saint Gobain
Versilon™ MUS-1000 Tubing

Engineered for uncompromising purity, Versilon™ MUS-1000 maintains the mechanical properties expected from standard fluoropolymers.

It resists common chemicals and UV degradation while enabling efficient UV ray transmission.

Replaces Versilon™ TSC367 tubing.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 EA

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: MUS1000-0250-062-50 Saint Gobain | 50 |
Brand: Versilon
Series: Versilon MUS-1000
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.125in
Outer Diameter: 0.25in
Tubing Construction: Fluoropolymer

SPECIFICATIONS

Application: Environmental, Chemical processing, General industrial, Water purification, Nuclear SAE Rating: N/A
Other Ratings: N/A Tube: Fluoropolymer
Reinforcement: N/A Cover: N/A
Continuous Operating Temp Range: -400 deg. F (-400 deg. C) to 400 deg. F (205 deg. C) Color: Clear
Durometer Hardness (Shore D), 1 sec: 56 / D2240
Literature: Versilon™ MUS-1000 Tubing (PDF)
Other Features:
  • Vastly superior surface smoothness compared to other fluoropolymer tubing.
  • Very high UV transmission compared to other fluoropolymer tubing.
  • Superior clarity versus other fluoropolymer tubing.
  • Resistant to virtually all commonly used chemicals.
  • Excellent mechanical properties.
Part Number (50ft Lengths) Part Number (100ft Lengths) Inside Diameter (in. or mm) Outside Diameter (in. or mm) Wall Thickness (in. or mm) Bend Radius (in.) Max. Working Pressure at 73 deg. F (PSI)* Max. Working Pressure at 212 deg. F (PSI)* Max. Working Pressure at 400 deg. F (PSI)*
MUS1000-0125-031-50 MUS1000-0125-031.10 1/16" 1/8" 1/32" 1/2" 379 PSI 165 PSI 87 PSI
MUS1000-0250-062-50 MUS1000-0250-062.10 1/8" 1/4" 1/16" 1/2" 383 PSI 167 PSI 88 PSI
MUS1000-0250-047-50 MUS1000-0250-047.10 5/32" 1/4" 3/32" 3/4" 266 PSI 116 PSI 61 PSI
MUS1000-0250-031-50 MUS1000-0250-031.10 3/16" 1/4" 1/32" 1" 163 PSI 71 PSI 37 PSI
MUS1000-0312-031-50 MUS1000-0312-031.10 1/4" 5/16" 1/32" 1-3/4" 129 PSI 56 PSI 29 PSI
MUS1000-0375-062-50 MUS1000-0375-062.10 1/4" 3/8" 1/16" 1" 230 PSI 100 PSI 53 PSI
MUS1000-0500-062-50 MUS1000-0500-062.10 3/8" 1/2" 1/16" 2" 164 PSI 71 PSI 38 PSI

* Safety factor of 4 to 1 ratio burst pressure to working pressure. ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.

Saint Gobain

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
