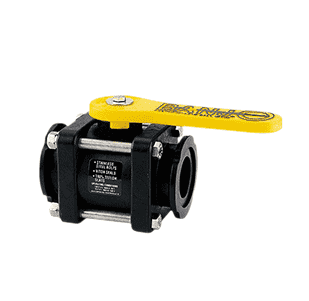

MV200CF Banjo Polypropylene Manifold 4 Bolt Ball Valve - 2" Flange x 2" Flange - Opening Thru Ball: 1-1/2" - PSI

MV200CF by Banjo | Manifold Flange Connection for Manifold 4 Bolt Ball Valve | 2" Flange x 2" Flange | Opening Thru Ball: 1-1/2" | 225 PSI | Polypropylene

Save $5.26

$47.35

$47.35 - $47.35

$47.35

$42.09

$42.09 - $42.09

$42.09

Banjo Manifold Flange Connections
Manifold Bolted Ball Valves - 4 and 6 Bolt Valves - Polypropylene

Quantity

Specifications for Variant SKU: MV200CF Banjo
Shape (Orientation):	Straight
Ends Configuration:	2in Standard Port Manifold Flange, 2in Standard Port Manifold Flange, Some Ends Match
Material(s):	Polypropylene
Seal Material(s):	Viton/FKM

Applications:
Fluids
Features:
FKM (viton type) seals. PTFE self-lubricating stem bush ings and seats cannot stick or bind. Precision molded in polypropylene. Polypropylene is reinforced with fiberglass for additional strength Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle. Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.

Part Number	Description	End Type	Opening Thru Ball	Max PSI
MV100CF	4 Bolt Flange Ball Valve	1" Flange x 1" Flange	1"	300 PSI
MV200CF	4 Bolt Flange Ball Valve	2" Flange x 2" Flange	1-1/2"	225 PSI
MV220CF	4 Bolt Full Port Flange Ball Valve	2" Flange x 2" Flange	2"	300 PSI
MV300	6 Bolt Standard Flange Ball Valve	3" Flange x 3" Flange	2-1/2"	150 PSI
MV300CF	6 Bolt Full Port Flange Ball Valve	3" Flange x 3" Flange	3"	300 PSI


Replacement Parts for MV220CF
Item	Part Number	Description	Quantity Required
1	V25478	2" Full Port Manifold End Plate	2
2	V25153	Handle	1
3	V25254	Body	1
6	V20018	3/8" S.S. Lock Washer	4
7	V20019	3/8" 316 SS Hex Nut	4
8	V20017	3/8" x 4" S.S. Body Bolt	1
9	V25160*	Upper Stem Bushing	1
10	V25163*	FKM (viton type) Stem O-Ring	1
11	V25060*	Thrust Washer	1
12	V25151B	Stem	1
13	V25258A*	Ball Seat	2
14	V25255A*	Ball	1
15	V25264*	FKM (viton type) Body O-Ring	2

* Is included in Repair Kit

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
