MW-04-05-SST by Kurt Hydraulics | Stand Tube | PTFE Coupling | for 1/4" Hose ID

MW-04-05-SST by Kurt Hydraulics | Stand Tube | PTFE Coupling | for 1/4" Hose ID

Save $4.40 Save $4.40
$11.00
$11.00 - $11.00
$11.00
$6.60
$6.60 - $6.60
$6.60

by Kurt Hydraulics
MW-SST - Stand Tube Rigid - PTFE Couplings

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MW-04-05-SST Kurt
Series: SST Series
Shape (Orientation): Straight

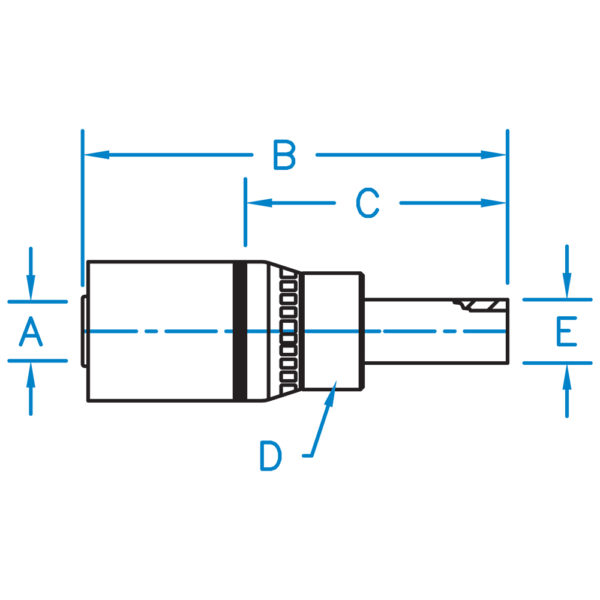

Part Number A B C D E Hose ID
(In)		 Thread
MW-04-04-SST 0.250 2.750 1.495 5/8 0.250 1/4" N/A
MW-04-05-SST 0.250 2.862 1.607 5/8 0.312 1/4" N/A
MW-04-06-SST 0.250 2.940 1.685 5/8 0.375 1/4" N/A
MW-06-06-SST 0.375 3.180 1.680 11/16 0.375 3/8" N/A
MW-06-08-SST 0.375 3.450 1.950 3/4 0.500 3/8" N/A
MW-08-08-SST 0.500 3.633 1.945 7/8 0.500 1/2" N/A
MW-08-10-SST 0.500 3.843 0.715 7/8 0.625 1/2" N/A
MW-12-12-SST 0.750 4.765 2.885 1-1/8 0.750 3/4" N/A
MW-16-16-SST 1.000 4.785 3.051 1-3/8 1.000 1" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
