MW-04-06 by Kurt Hydraulics | Stand Tube for 1/4" Hose ID

MW-04-06 by Kurt Hydraulics | Stand Tube for 1/4" Hose ID

Save $4.49 Save $4.49
$11.22
$11.22 - $11.22
$11.22
$6.73
$6.73 - $6.73
$6.73

by Kurt Hydraulics
MW - Stand Tube Rigid

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MW-04-06 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight

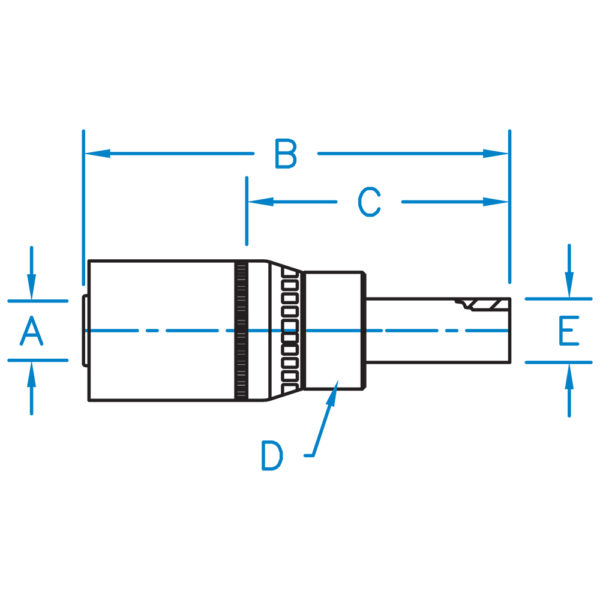

Part Number A B C D E Hose ID
(In)		 Thread
MW-04-04 0.250 2.720 1.465 5/8 1/4 1/4" N/A
MW-04-05 0.250 2.832 1.577 5/8 5/16 1/4" N/A
MW-04-06 0.250 2.910 1.655 5/8 3/8 1/4" N/A
MW-06-06 0.375 3.155 1.671 3/4 3/8 3/8" N/A
MW-06-06-W 0.375 2.990 1.620 11/16 R 3/8 3/8" N/A
MW-06-08 0.375 3.420 1.920 3/4 1/2 3/8" N/A
MW-08-08 0.500 3.608 2.039 7/8 1/2 1/2" N/A
MW-08-10 0.500 3.821 2.130 7/8 5/8 1/2" N/A
MW-12-12 0.750 4.855 2.975 1-1/8 3/4 3/4" N/A
MW-16-16 1.000 5.365 3.025 1-3/8 1.000 1.000" N/A

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
