MW-06-06-SST by Kurt Hydraulics | Stand Tube | PTFE Coupling | for 3/8" Hose ID

Name: MW-06-06-SST by Kurt Hydraulics | Stand Tube | PTFE Coupling | for 3/8" Hose ID
Brand: Kurt Hydraulics
SKU: MW-06-06-SST Kurt
Price: 5.99 USD
Availability: InStock

Save $0.75

$6.74

$6.74 - $6.74

$6.74

$5.99

$5.99 - $5.99

$5.99

by Kurt Hydraulics
MW-SST - Stand Tube Rigid - PTFE Couplings

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: MW-06-06-SST Kurt
Series:	MW Series
Shape (Orientation):	Straight

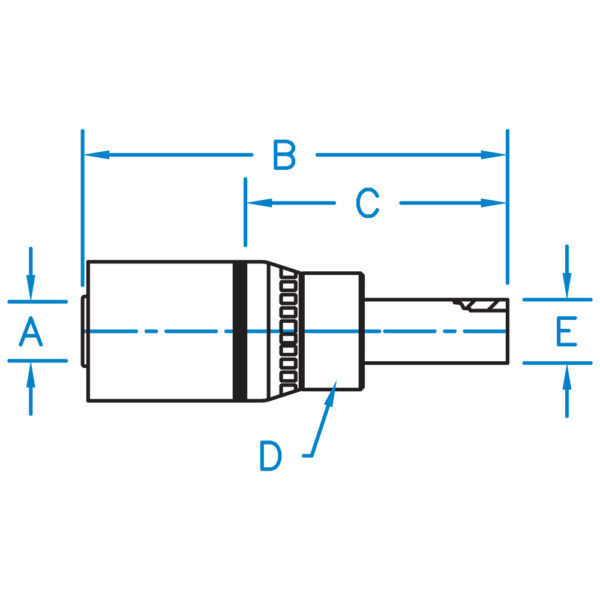

Part Number	A	B	C	D	E	Hose ID (In)	Thread
MW-04-04-SST	0.250	2.750	1.495	5/8	0.250	1/4"	N/A
MW-04-05-SST	0.250	2.862	1.607	5/8	0.312	1/4"	N/A
MW-04-06-SST	0.250	2.940	1.685	5/8	0.375	1/4"	N/A
MW-06-06-SST	0.375	3.180	1.680	11/16	0.375	3/8"	N/A
MW-06-08-SST	0.375	3.450	1.950	3/4	0.500	3/8"	N/A
MW-08-08-SST	0.500	3.633	1.945	7/8	0.500	1/2"	N/A
MW-08-10-SST	0.500	3.843	0.715	7/8	0.625	1/2"	N/A
MW-12-12-SST	0.750	4.765	2.885	1-1/8	0.750	3/4"	N/A
MW-16-16-SST	1.000	4.785	3.051	1-3/8	1.000	1"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
