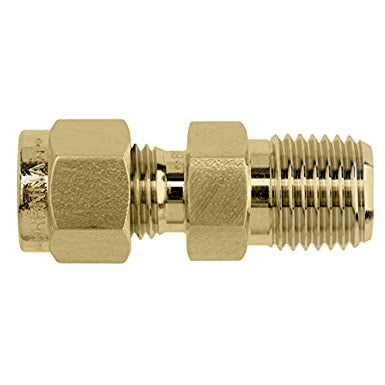

N2404-08-08-BT-B by Brennan Inc. | -08 Instrumentation Fitting x -08 Male NPT | Straight | Bore Through | Brass

N2404-08-08-BT-B by Brennan Inc. | -08 Instrumentation Fitting x -08 Male NPT | Straight | Bore Through | Brass

$17.20 - $17.20
$17.20
$18.92
$18.92 - $18.92
$18.92

Brennan Inc.
Double Ferrule Tube Fittings: N2404-BT - Instrumentation Fitting x Male NPT Straight (Bore Through)
Specifications for Variant SKU: N2404-08-08-BT-B Brennan
Shape (Orientation): Straight
Ends Configuration: 1/2in Tube Compression , 1/2in Male NPT
Material(s): Brass
Part Number Material T Tube OD P NPT Male A B C D E Min. F A/F G A/F H
N2404-03-02-BT-B Brass - - - - - - - - - -
N2404-03-04-BT-B Brass 3/16" 1/4" 1.43" 0.56" 0.63" 0.54" 0.19" 0.55" 0.43" 1.17"
N2404-04-04-BT-B Brass 1/4" 1/4" 1.49" 0.56" 0.70" 0.60" 0.26" 0.55" 0.55" 1.20"
N2404-08-08-BT-B Brass 1/2" 1/2" 1.93" 0.75" 0.86" 0.90" 0.51" 0.87" 0.87" 1.53"

N2404-01-02-BT-SS Stainless Steel 1/16" 1/8" 1.03" 0.38" 0.43" 0.34" 0.03" 0.43" 0.31" 0.88"
N2404-02-02-BT-SS Stainless Steel 1/8" 1/8" 1.20" 0.38" 0.60" 0.50" 0.13" 0.43" 0.43" 0.94"
N2404-03-02-BT-SS Stainless Steel - - - - - - - - - -
N2404-03-04-BT-SS Stainless Steel 3/16" 1/4" 1.43" 0.56" 0.63" 0.54" 0.19" 0.55" 0.43" 1.17"
N2404-04-02-BT-SS Stainless Steel - - - - - - - - - -
N2404-04-04-BT-SS Stainless Steel 1/4" 1/4" 1.49" 0.56" 0.70" 0.60" 0.26" 0.55" 0.55" 1.20"
N2404-04-06-BT-SS Stainless Steel 1/4" 3/8" 1.51" 0.56" 0.70" 0.60" 0.26" 0.75" 0.55" 1.22"
N2404-04-08-BT-SS Stainless Steel 1/4" 1/2" 1.76" 0.75" 0.70" 0.60" 0.26" 0.87" 0.55" 1.47"
N2404-05-04-BT-SS Stainless Steel - - - - - - - - - -
N2404-05-08-BT-SS Stainless Steel 5/16" 1/2" 1.80" 0.75" 0.73" 0.64" 0.32" 0.87" 0.55" 1.48"
N2404-06-04-BT-SS Stainless Steel - - - - - - - - - -
N2404-06-06-BT-SS Stainless Steel 3/8" 3/8" 1.57" 0.56" 0.76" 0.66" 0.38" 0.75" 0.67" 1.28"
N2404-08-06-BT-SS Stainless Steel - - - - - - - - - -
N2404-08-08-BT-SS Stainless Steel 1/2" 1/2" 1.93" 0.75" 0.86" 0.90" 0.51" 0.87" 0.87" 1.53"
N2404-08-12-BT-SS Stainless Steel 1/2" 3/4" 1.99" 0.75" 0.86" 0.90" 0.51" 1.06" 0.87" 1.59"
N2404-10-08-BT-SS Stainless Steel - - - - - - - - - -
N2404-10-12-BT-SS Stainless Steel 5/8" 3/4" 1.99" 0.75" 0.86" 0.96" 0.63" 1.06" 0.94" 1.59"
N2404-12-12-BT-SS Stainless Steel 3/4" 3/4" 1.99" 0.75" 0.86" 0.96" 0.76" 1.06" 1.12" 1.59"
N2404-16-16-BT-SS Stainless Steel 1" 1" 2.45" 0.94" 1.04" 1.23" 1.01" 1.42" 1.50" 1.97"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
