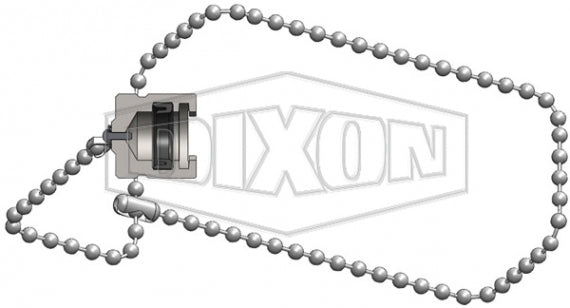

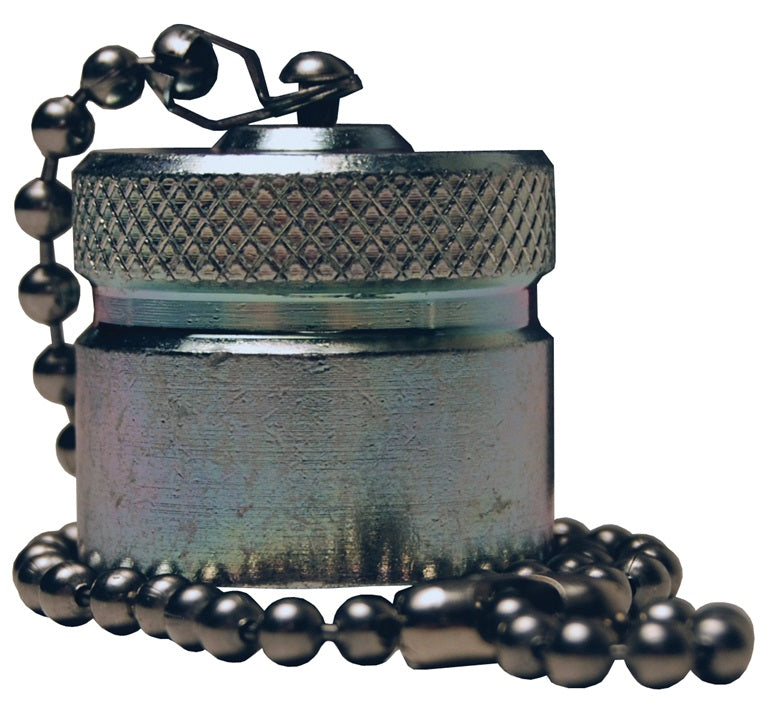

N4DC by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | Bowes Interchange Plug Cap | 1/2" Body Size | Steel

Save $10.99

$27.47

$27.47 - $27.47

$27.47

$16.48

$16.48 - $16.48

$16.48

Dixon Valve & Coupling
Pneumatic Coupling: Dix-Lock N-Series Bowes Interchange Plug Cap

Specifications for Variant SKU: N4DC Dixon
Brand:	Dix-Lock
Series:	N-Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female MIL-C-3486 QD Interchange
Material(s):	Steel

Compatibility & Interchange:	Bowes Interchange Bayonet Style Interchangeable with Bowes 51000-Series, National Series 'B', MacDonald Quick-Action, Campbell Single-Lock Conforms to MIL-C-3486 and A-A-50431A standards.
Construction:	Machined components are manufactured using solid bar stock. Steel componentry is plated using ROHS Compliant Trivalent Chrome. Dust cap with steel cable lanyard. Temperature Range: -40°F to 250°F (-40°C to 121°C).
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

Dix-Lock N-Series \| Bowes Interchange Plug Cap

Part Number	Cap Lanyard	Body Size	Material	Length	Maximum OD
N4DC	Steel Cable	1/2"	Steel	1.50" (38.1mm)	1.33" (33.8mm)
N4DC-B	Steel Cable	1/2"	Brass	1.50" (38.1mm)	1.33" (33.8mm)
