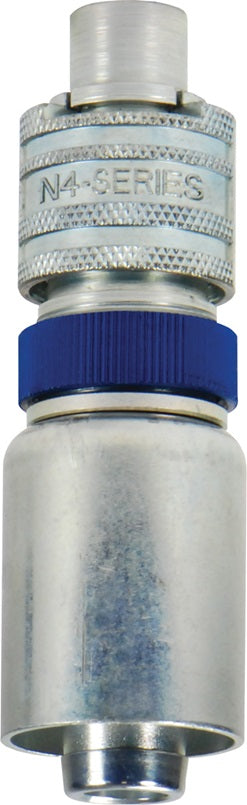

N4S6-LS-WF by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | Hose Barb with Ferrule | 3/4" Hose ID x 1/2" Body Size | Plug with Locking Sleeve | Steel

N4S6-LS-WF by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | Hose Barb with Ferrule | 3/4" Hose ID x 1/2" Body Size | Plug with Locking Sleeve | Steel

Save $0.52 Save $0.52
$23.27
$23.27 - $23.27
$23.27
$22.75
$22.75 - $22.75
$22.75

Dixon Valve & Coupling
Pneumatic Coupling: Dix-Lock N-Series Plug with Ferrule and Locking Sleeve (Hose Barb)
Specifications for Variant SKU: N4S6-LS-WF Dixon
Brand: Dix-Lock
Series: N-Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 1/2in Male MIL-C-3486 QD Interchange
Material(s): Plated Steel
Compatibility & Interchange:
  • Bowes Interchange Bayonet Style
  • Interchangeable with Bowes 51000-Series, National Series 'B', MacDonald Quick-Action, Campbell Single-Lock
Construction:
  • Machined components are manufactured using solid brass bar stock.
  • Stainless steel retaining ring and spring maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Coupling sleeve constructed of cast zinc steel.
  • Aluminum lock ring.
Safety Notes:
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
Dix-Lock N-Series | Plug with Ferrule and Locking Sleeve (Hose Barb)
Part
Number		 Coupling
Type		 Body
Size		 Hose ID Material Hose OD Length Max.
OD		 Pressure Rating:
From To
N4S4-B-LS-WF Plug/Male 1/2" 1/2" Brass 54/64" 1-2/64" 4.95"
(125.70mm)		 1.40"
(35.6mm)		 300 PSI*
N4S6-B-LS-WF Plug/Male 1/2" 3/4" Brass 1-10/64" 1-22/64" 4.95"
(125.70mm)		 1.40"
(35.6mm)		 300 PSI*
N4S4-LS-WF Plug/Male 1/2" 1/2" Steel 54/64" 1-2/64" 4.95"
(125.70mm)		 1.40"
(35.6mm)		 300 PSI*
N4S6-LS-WF Plug/Male 1/2" 3/4" Steel 1-10/64" 1-22/64" 4.95"
(125.70mm)		 1.40"
(35.6mm)		 300 PSI*

* at ambient temperature 70°F (21°C)

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
