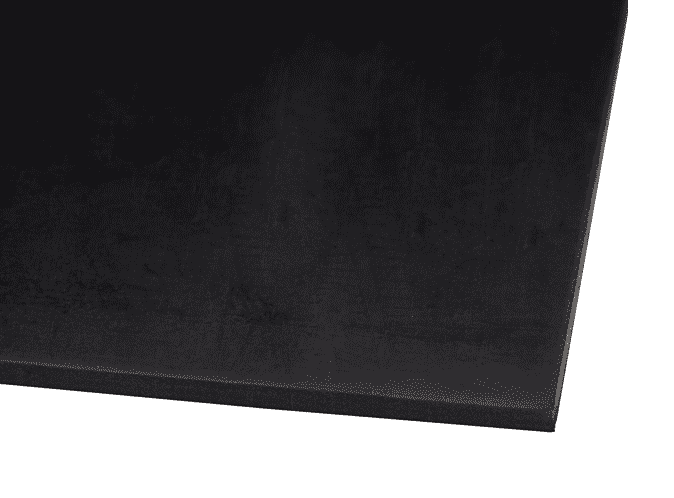

N60-03X48X67 by Kuriyama | Commercial Grade Neoprene Sheet Rubber | 60 Duro Hardness | Shore Durometer A | Black | 3/32" x 48" | 67ft Roll

Save $54.84 Save $54.84
Original price $548.90
Original price $548.90 - Original price $548.90
Original price $548.90
Current price $494.06
$494.06 - $494.06
Current price $494.06

Kuriyama Industrial Sheet Rubber - Commercial Grade Black Neoprene Sheet

Package Quantity: 67 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: N60-03X48X67 Kuriyama | 67 |

SPECIFICATIONS

Styles: Style N40: 40 Duro hardness (Shore Durometer A)
Style N50: 50 Duro hardness (Shore Durometer A)
Style N60: 60 Duro hardness (Shore Durometer A)
Style N70: 70 Duro hardness (Shore Durometer A)
Style N80: 80 Duro hardness (Shore Durometer A)
Polymer: Chloroprene
Common Name: Neoprene ISO/ASTM Designation: CR
Features & Properties:
  • Good weather-resistance
  • Moderate resistance to petroleum-based fluids
  • Good physical properties
  • (Properties shown based on Rubber Manufacturers Association Sheet Rubber Handbook, second edition)
  • Acid Resistance
  • Alkali Resistance
  • Compression Set Resilience
  • Gas Permeability Resistance
  • Gas Resistance
  • Good physical properties
  • Good Weather-Resistance
  • Heat Aging Abrasion Resistance
  • Moderate resistance to petroleum-based fluids
  • Oil Resistance
  • Tear Flame Resistance
  • Weathering Ozone Resistance
Part Number Gauge x Width
in.
ASTM Specification
(SI units)
Temp.
Range
Durometer Tensile Strength
(PSI)
Elongation
(%)
Finish Avg. Length
(Linear Ft. /Roll)
Weight
(Lbs/Roll)
N40-02X36X67 1/16" x 36" D 2000 M2BC 407 -20 deg. F to +180 deg. F 35 - 45 900 PSI 400% Plate 67ft 96 lbs
N40-04X36X67 1/8" x 36" D 2000 M2BC 407 -20 deg. F to +180 deg. F 35 - 45 900 PSI 400% Plate 67ft 195 lbs
N40-02X36X36 3/16" x 36" D 2000 M2BC 407 -20 deg. F to +180 deg. F 35 - 45 900 PSI 400% Plate 36ft 158 lbs
N40-08X36X36 1/4" x 36" D 2000 M2BC 407 -20 deg. F to +180 deg. F 35 - 45 900 PSI 400% Plate 36ft 210 lbs
N40-02X48X67 1/16" x 48" D 2000 M2BC 407 -20 deg. F to +180 deg. F 35 - 45 900 PSI 400% Plate 67ft 128 lbs
N40-03X48X67 3/32" x 48" D 2000 M2BC 407 -20 deg. F to +180 deg. F 35 - 45 900 PSI 400% Plate 67ft 200 lbs
N40-04X48X67 1/8" x 48" D 2000 M2BC 407 -20 deg. F to +180 deg. F 35 - 45 900 PSI 400% Plate 67ft 256 lbs
N40-06X48X36 3/16" x 36" D 2000 M2BC 407 -20 deg. F to +180 deg. F 35 - 45 900 PSI 400% Plate 36ft 215 lbs
N40-08X48X36 1/4" x 48" D 2000 M2BC 407 -20 deg. F to +180 deg. F 35 - 45 900 PSI 400% Plate 36ft 280 lbs
N50-02X48X67 1/16" x 48" D 2000 M2BC 507 -20 deg. F to +180 deg. F 45 - 55 1000 PSI 400% Plate 67ft 132 lbs
N50-04X48X36 1/8" x 48" D 2000 M2BC 507 -20 deg. F to +180 deg. F 45 - 55 1000 PSI 400% Plate 36ft 142 lbs
N50-06X48X36 3/16" x 48" D 2000 M2BC 507 -20 deg. F to +180 deg. F 45 - 55 1000 PSI 400% Plate 36ft 213 lbs
N50-08X48X18 1/4" x 48" D 2000 M2BC 507 -20 deg. F to +180 deg. F 45 - 55 1000 PSI 400% Plate 18ft 142 lbs
N60-01X36X67 1/32" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 67ft 52 lbs
N60-02X36X67 1/16" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 67ft 99 lbs
N60-02X36X100 1/16" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 100ft 147 lbs
N60-03X36X67 3/32" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 67ft 149 lbs
N60-04X36X50 1/8" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 50ft 148 lbs
N60-04X36X67 1/8" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 67ft 198 lbs
N60-04X36X100 1/8" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 100ft 295 lbs
N60-06X36X40 3/16" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 36ft 179 lbs
N60-06X36X50 3/16" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 50ft 223 lbs
N60-08X36X36 1/4" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 36ft 214 lbs
N60-08X36X40 1/4" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 40ft 238 lbs
N60-08X36X50 1/4" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 50ft 297 lbs
N60-16X36X18 1/2" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 18ft 214 lbs
N60-16X36X25 1/2" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 25ft 297 lbs
N60-24X36X18 3/4" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 18ft 319 lbs
N60-24X36X25 3/4" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 25ft 443 lbs
N60-32X36X18 1" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 18ft 426 lbs
N60-32X36X25 1" x 36" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 25ft 592 lbs
N60-02X48X67 1/16" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 67ft 132 lbs
N60-02X48X100 1/16" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 100ft 197 lbs
N60-03X48X67 3/32" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 67ft 200 lbs
N60-04X48X36 1/8" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 36ft 142 lbs
N60-04X48X50 1/8" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 50ft 197 lbs
N60-06X48X36 3/16" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 36ft 213 lbs
N60-06X48X40 3/16" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 40ft 236 lbs
N60-06X48X50 3/16" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 50ft 296 lbs
N60-08X48X18 1/4" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 18ft 142 lbs
N60-08X48X50 1/4" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 50ft 394 lbs
N60-12X48X30 3/8" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 30ft 355 lbs
N60-16X48X18 1/2" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 18ft 284 lbs
N60-16X48X25 1/2" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 25ft 394 lbs
N60-16X48X30 1/2" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 30ft 471 lbs
N60-16X48X40 1/2" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 40ft 628 lbs
N60-24X48X18 3/4" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 18ft 425 lbs
N60-24X48X25 3/4" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 25ft 590 lbs
N60-32X48X18 1" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 18ft 567 lbs
N60-32X48X25 1" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1000 PSI 350% Plate 25t 788 lbs
N70-02X48X67 1/16" x 48" D 2000 M2BC 707 -20 deg. F to +180 deg. F 65 - 75 1000 PSI 350% Plate 67ft 132 lbs
N70-04X48X36 1/8" x 48" D 2000 M2BC 707 -20 deg. F to +180 deg. F 65 - 75 1000 PSI 350% Plate 36ft 142 lbs
N70-06X48X36 3/16" x 48" D 2000 M2BC 707 -20 deg. F to +180 deg. F 65 - 75 1000 PSI 350% Plate 36ft 213 lbs
N70-08X48X18 1/4" x 48" D 2000 M2BC 707 -20 deg. F to +180 deg. F 65 - 75 1000 PSI 350% Plate 18ft 142 lbs
N80-02x36x50 1/16" x 36" D 2000 M2BC 807 -20 deg. F to +180 deg. F 75 - 85 900 PSI 200% Plate 50ft 74 lbs
N80-04x36x50 1/8" x 36" D 2000 M2BC 807 -20 deg. F to +180 deg. F 75 - 85 900 PSI 200% Plate 50ft 148 lbs
N80-06x36x50 3/16" x 36" D 2000 M2BC 807 -20 deg. F to +180 deg. F 75 - 85 900 PSI 200% Plate 50ft 223 lbs
N80-08x36x50 1/4" x 36" D 2000 M2BC 807 -20 deg. F to +180 deg. F 75 - 85 900 PSI 200% Plate 50ft 297 lbs

NOTE: N80 is also available in 48" width . . . contact Customer Service.
