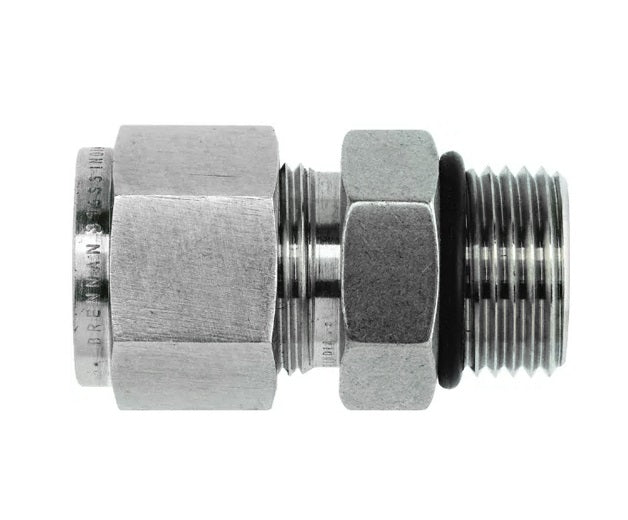

N6400-08-08-O-SS by Brennan Inc. | -08 Instrumentation Fitting x -08 Male O-Ring Boss | Straight | Stainless Steel

N6400-08-08-O-SS by Brennan Inc. | -08 Instrumentation Fitting x -08 Male O-Ring Boss | Straight | Stainless Steel

$42.91 - $42.91
$42.91
$47.20
$47.20 - $47.20
$47.20

Brennan Inc.
Double Ferrule Tube Fittings: N6400 - Instrumentation Fitting x Male O-Ring Boss Straight
Specifications for Variant SKU: N6400-08-08-O-SS Brennan
Shape (Orientation): Straight
Ends Configuration: 1/2in Tube Compression , 1/2in Male O-Ring Boss
Material(s): Stainless Steel
Part Number Material T Tube OD S Thread Male A B C D E Min. F A/F G A/F H O-Ring Part No.
N6400-02-02-O-SS Stainless Steel 1/8" 5/16-24" 30.0mm 7.6mm 15.2mm 12.7mm 2.3mm 7/16" 7/16" 23.4mm 4001-02
N6400-02-04-O-SS Stainless Steel - - - - - - - - - - -
N6400-04-04-O-SS Stainless Steel 1/4" 7/16-20" 34.0mm 9.1mm 17.8mm 15.2mm 4.8mm 9/16" 9/16" 26.7mm 4001-04
N6400-04-06-O-SS Stainless Steel 1/4" 9/16-18" 1.40" 0.39" 0.70" 0.60" 0.19" 0.69" 0.56" 1.11" 4001-06
N6400-04-08-O-SS Stainless Steel 1/4" 3/4-16" 1.48" 0.44" 0.70" 0.60" 0.19" 0.88" 0.56" 1.19" 4001-08
N6400-05-05-O-SS Stainless Steel 5/16" 1/2-20" 34.8mm 9.1mm 18.5mm 16.2mm 6.3mm 5/8" 5/8" 27.4mm 4001-05
N6400-06-04-O-SS Stainless Steel 3/8" 7/16-20" 1.40" 0.36" 0.76" 0.66" 0.20" 0.63" 0.69" 1.11" 4001-04
N6400-06-06-O-SS Stainless Steel 3/8" 9/16-18" 37.1mm 9.9mm 19.3mm 16.8mm 7.1mm 11/16" 11/16" 29.7mm 4001-06
N6400-06-08-O-SS Stainless Steel 3/8" 3/4-16" 1.54" 0.44" 0.76" 0.66" 0.28" 0.88" 0.69" 1.25" 4001-08
N6400-06-10-O-SS Stainless Steel 3/8" 7/8-14" 1.66" 0.50" 0.76" 0.66" 0.28" 1.00" 0.69" 1.37" 4001-10
N6400-08-06-O-SS Stainless Steel 1/2" 9/16-18" 1.54" 0.39" 0.86" 0.90" 0.28" 0.81" 0.88" 1.14" 4001-06
N6400-08-08-O-SS Stainless Steel 1/2" 3/4-16" 41.9mm 11.2mm 21.8mm 22.9mm 10.4mm 7/8" 7/8" 31.7mm 4001-08
N6400-08-10-O-SS Stainless Steel 1/2" 7/8-14" 45.0mm 12.7mm 21.8mm 22.9mm 10.4mm 1" 7/8" 38.4mm 4001-10
N6400-10-10-O-SS Stainless Steel 5/8" 7/8-14" 1.78mm 0.50mm 0.86mm 0.96mm 0.50mm 1.00mm 1.00mm 1.38mm 4001-10
N6400-12-08-O-SS Stainless Steel 3/4" 3/4-16" 1.81" 0.44" 0.86" 0.96" 0.42" 1.06" 1.13" 1.41" 4001-08
N6400-12-12-O-SS Stainless Steel 3/4" 1-1/16-12" 49.0mm 15.0mm 21.8mm 24.4mm 15.70mm 1-1/4" 1-1/8" 38.9mm 4001-12
N6400-16-16-O-SS Stainless Steel 1" 1-5/16-12" 54.4mm 15.0mm 26.4mm 31.2mm 22.3mm 1-1/2" 1-1/2" 42.2mm 4001-16
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
