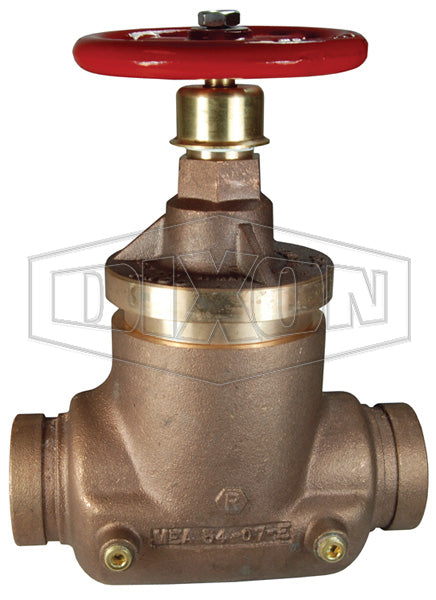

NAPRVGT250-60 Dixon Cast Brass Factory Set Pressure Reducing Standard Globe Valve - 2-1/2" Grooved Inlet x 2-1/2" Grooved Outlet - Calculated Setting: 60

NAPRVGT250-60 Dixon Cast Brass Factory Set Pressure Reducing Standard Globe Valve - 2-1/2" Grooved Inlet x 2-1/2" Grooved Outlet - Calculated Setting: 60

Save $90.06 Save $90.06
$799.73
$799.73 - $799.73
$799.73
$709.67
$709.67 - $709.67
$709.67

Dixon Fire Fittings
Factory Set Pressure Reducing Brass Standard Globe Valve

True combination shut-off and pressure reducing valve.
Specifications for Variant SKU: NAPRVGT250-60 Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Grooved End, 2-1/2in Grooved End, Some Ends Match
Material(s): Brass
Features:
  • 1-1/2" size reduces inlet pressure of 300 PSI (2069 kPa) or less to working pressures of 10 through 175 PSI (69-1207 kPa).
  • 2-1/2" size reduces inlet pressures of 400 PSI (2758 kPa) or less to desired working pressures from 20 through 175 PSI (138-1207 kPa) under discharge or static conditions.
  • Tamper resistant.
Specifications:
  • UL listed for Automatic Sprinkler Systems as floor or zone control valve
  • Standpipe Systems, Class I, II and III
  • Automatic Check Valve for Dual Riser Systems
  • Approved by the New York City Board of Standards and Appeals, approval # MEA 54-07-E
  • Approved by the City of Los Angeles and the City of San Francisco (ULC 2-1/2")
Size Style A B C D E Closed E Open
2-1/2" NPT 3-7/8" 7-3/4" 5-3/4" 3-3/4" 12-3/4" 12-13/16"
2-1/2" Grooved 4-3/8" 8-3/4" 5-3/4" 5-3/4" 12-3/4" 12-13/16"
Part Number Inlet Outlet Calculated
Setting		 Weight
(Lbs.)
Female x Female
NAPRAV150F-15 1-1/2" Female NPT 1-1/2" Female NPT 15 7.5200
NAPRAV150F-20 1-1/2" Female NPT 1-1/2" Female NPT 20 7.3300
NAPRAV150F-25 1-1/2" Female NPT 1-1/2" Female NPT 25 7.2200
NAPRAV150F-30 1-1/2" Female NPT 1-1/2" Female NPT 30 7.4400
NAPRAV150F-35 1-1/2" Female NPT 1-1/2" Female NPT 35 -
NAPRAV250F-55 1-1/2" Female NPT 1-1/2" Female NPT 55 18.7750
NAPRAV250F-60 1-1/2" Female NPT 1-1/2" Female NPT 60 18.1000
NAPRAV250F-65 1-1/2" Female NPT 1-1/2" Female NPT 65 36.7000
NAPRAV250F-70 1-1/2" Female NPT 1-1/2" Female NPT 70 19.8900
NAPRAV250F-75 1-1/2" Female NPT 1-1/2" Female NPT 75 18.2000
NAPRAV250F-80 1-1/2" Female NPT 1-1/2" Female NPT 80 20.3800
Grooved x Grooved
NAPRAVF150-15 1-1/2" Grooved 1-1/2" Grooved 15 7.0000
NAPRAVF150-20 1-1/2" Grooved 1-1/2" Grooved 20 7.2000
NAPRAVF150-25 1-1/2" Grooved 1-1/2" Grooved 25 7.2200
NAPRAVF150-30 1-1/2" Grooved 1-1/2" Grooved 30 7.4400
NAPRAVF150-50 1-1/2" Grooved 1-1/2" Grooved 50 -
NAPRAVF250-55 1-1/2" Grooved 1-1/2" Grooved 55 18.5000
NAPRAVF250-60 1-1/2" Grooved 1-1/2" Grooved 60 18.1000
NAPRAVF250-65 1-1/2" Grooved 1-1/2" Grooved 65 18.5000
NAPRAVF250-70 1-1/2" Grooved 1-1/2" Grooved 70 19.5200
NAPRAVF250-75 1-1/2" Grooved 1-1/2" Grooved 75 21.2200
NAPRAVF250-80 1-1/2" Grooved 1-1/2" Grooved 80 22.6700
Accessories
Part Number Description Weight
(Lbs.)
18-458-00017 Switch Bracket Only 0.3200
AV150-W Replacement Handles for 1-1/2" Valves 0.2200
46-030-00025 Replacement Handles for 2-1/2" Valves 0.9400
