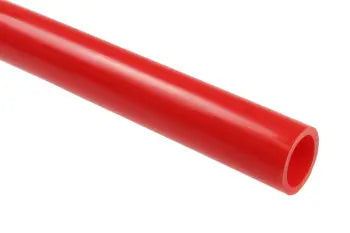

NC0325-100R by Coilhose | Tubing | 3/16" OD x .138" ID | .025" Wall thickness | Red | Nylon | 100ft

Save $17.79

$44.48

$44.48 - $44.48

$44.48

$26.69

$26.69 - $26.69

$26.69

Coilhose Pneumatics - Plastic Tubing - Nylon Tubing - 3/16" OD x .138" ID

Quantity

Specifications for Variant SKU: NC0325-100R Coilhose
Hose Color(s):	Red
Material(s):	Nylon

Overview:
Coilhose Pneumatics offers high quality Nylon 11 Tubing for applications requiring low density, lightweight toughness, flexibility and chemical resistance. Its Dimensional stability makes it compatible with . Lengths of 100 feet are packaged in plastic bags; longer lengths are on reels.
Features:
Dimensional stability makes it compatible with: Coilock Fittings Poly-Tube Fittings

Temperature Range:	-60° F to 200° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	.0.002"; -0.004" All inch sizes +0.051 mm; -.1 mm All Metric sizes	Hardness:	78 Rockwell R
Working Pressure:	4 to 1 Safety Factor	Compliance:	Meets UL94HB
UV Stabilized:	Yes

Part Number 100ft Length	Part Number 500ft Length	Part Number 2000ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
NC0325-100R	NC0325-500R	NC0325-2000R	Red	3/16" x .138"	.025"	260 PSI
NC0325-100N	NC0325-500N	NC0325-2000N	Natural
NC0325-100B	NC0325-500B	NC0325-2000B	Blue
NC0325-100K	NC0325-500K	NC0325-2000K	Black
