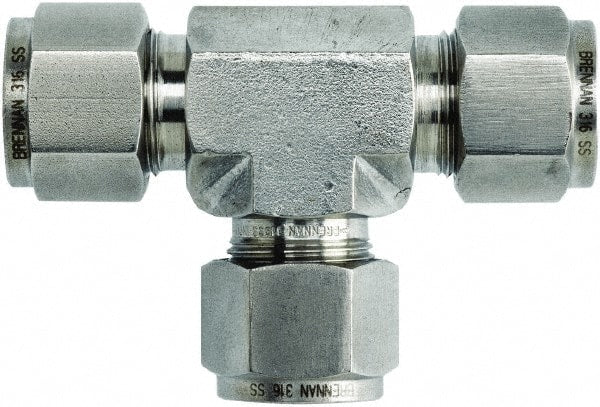

NS2603-12-12-12-SS by Brennan Inc. | -12 Single Ferrule Instrumentation Fitting x -12 Instrumentation Fitting x -12 Instrumentation Fitting | Tee | Stainless Steel

NS2603-12-12-12-SS by Brennan Inc. | -12 Single Ferrule Instrumentation Fitting x -12 Instrumentation Fitting x -12 Instrumentation Fitting | Tee | Stainless Steel

$167.72 - $167.72
$167.72
$184.48
$184.48 - $184.48
$184.48

Brennan Inc.
Single Ferrule Tube Fittings: NS2603 - Single Ferrule Instrumentation Fitting x Instrumentation Fitting x Instrumentation Fitting Tee
Specifications for Variant SKU: NS2603-12-12-12-SS Brennan
Shape (Orientation): Tee
Ends Configuration: 3/4in Tube Compression , 3/4in Tube Compression , 3/4in Tube Compression, Some Ends Match
Material(s): Stainless Steel
Part Number Material T Tube OD TX Tube OD A
mm		 AX
mm		 AY
mm		 C
mm		 CX
mm		 D
mm		 DX
mm		 E Min.
mm		 F A/F
mm		 G A/F
mm		 GX A/F
mm		 H
mm		 HX
mm		 HY
mm
NS2603-04-04-04-B Brass 1/4" - 53.8mm 26.9mm - 17.8mm - 15.3mm - 4.8mm 14mm 14mm - 39.2mm 19.6mm -
NS2603-06-06-06-B Brass 3/8" - 61.0mm 30.5mm - 19.3mm - 16.8mm - 7.1mm 17mm 17mm - 46.4mm 23.2mm -

NS2603-04-04-04-SS Stainless Steel 1/4" - 53.8mm 26.9mm - 17.8mm - 15.3mm - 4.8mm 14mm 14mm - 39.2mm 19.6mm -
NS2603-06-06-04-SS Stainless Steel 3/8" 1/4" 61.0mm 30.5mm 29.0mm 19.3mm 17.8mm 16.8mm 15.3mm 4.8mm 16mm 17mm 14mm 46.2mm 23.1mm 21.6mm
/NS2603-06-06-06-SS Stainless Steel 3/8" - 61.0mm 30.5mm - 19.3mm - 16.8mm - 7.1mm 17mm 17mm - 46.4mm 23.2mm -
NS2603-08-08-08-SS Stainless Steel 1/2" - 72.0mm 36.0mm - 21.8mm - 22.9mm - 10.4mm 22mm 22mm - 51.8mm 25.9mm -
NS2603-10-10-10-SS Stainless Steel 5/8" - 76.2mm 38.1mm - 21.8mm - 24.4mm - 12.7mm 24mm 25mm - 55.8mm 27.9mm -
NS2603-12-12-12-SS Stainless Steel 3/4" - 79.8mm 39.9mm - 21.8mm - 24.4mm - 15.8mm 27mm 28.5mm - 59.4mm 29.7mm -
NS2603-16-16-16-SS Stainless Steel 1" - 98.0mm 49.0mm - 26.4mm - 31.2mm - 22.3mm 35mm 38mm - 73.6mm 36.8mm -
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
