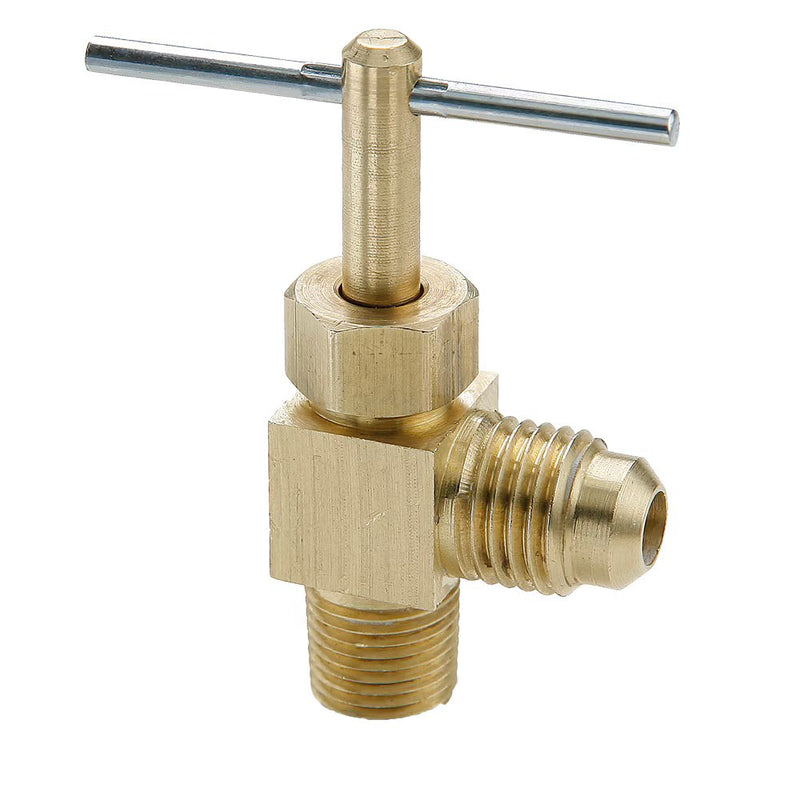

NV101F-4-2 by Parker | Needle Valve | 1/4" Flare x 1/8" Male Pipe Thread | 1.58" Length | 90° Elbow | Brass | Pack of 10

Save $64.18

$160.45

$160.45 - $160.45

$160.45

$96.27

$96.27 - $96.27

$96.27

by Parker Hannifin
Needle Valves:Angle Needle Valve NV101F Flare to Male Pipe

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: NV101F-4-2 Parker \| 10 \|
Series:	NV101F Series
Shape (Orientation):	90° Elbow
Material(s):	Brass
Special Properties:	Valved

Specification:
Parker’s all brass needle valves have metal-to-metal seats with fine thread screwdown. The specially formulated low temperature seal remains elastic to temperatures as low as -40°F (-40° C).
Product Features:	Extruded Brass Body & Stem Low Temperature Seal Metal-to-Metal Seal Pin Handle Pre-applied Vibra-Seal thread sealant available
Compatible Fluids:	Compressed air, water, industrial fluids Other fluids: please contact division.
Temperature Range:	-40° to +175° F (-40° to +79.4° C) Humidifier Valve Kit & Self Piercing Humidifier Kit: -30° to +250° F (-34.4° to +121.1° C) NV311P/NV312P: 0° to +150° F (-17.7° to +65.5° C)
Pressure Range:	Up to 150 PSI (10.3 bar)


Part Number	Tube Size	Pipe Thread	H	L	M	N
NV101F-4-2*	1/4"	1/8"	1.50"	1.58"	.75"	.66"
NV101F-6-4	3/8"	1/4"	1.38"	1.86"	.95"	.90"

*Provided with Pin Handle
