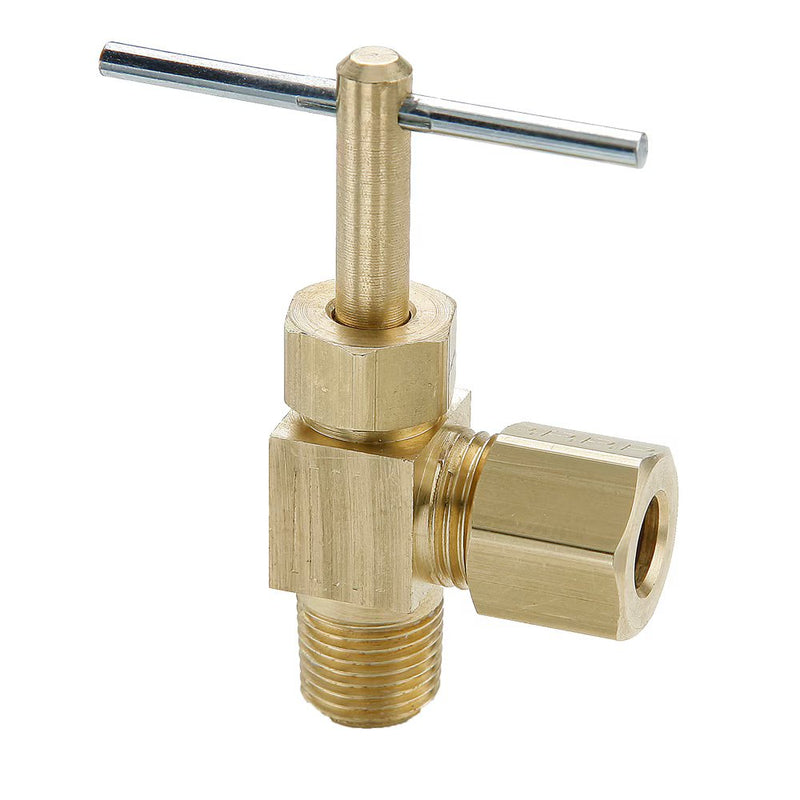

NV104C-4-2 by Parker | Angle Needle Valve | 1/4" Tube Size x 1/8" Male Pipe Thread | 1.54" Length | 90° Elbow | Brass | Pack of 10

NV104C-4-2 by Parker | Angle Needle Valve | 1/4" Tube Size x 1/8" Male Pipe Thread | 1.54" Length | 90° Elbow | Brass | Pack of 10

Save $66.05 Save $66.05
$165.12
$165.12 - $165.12
$165.12
$99.07
$99.07 - $99.07
$99.07

by Parker Hannifin
Needle Valves:Angle Needle Valve NV104C-NV104CA Compression to Male Pipe

Package Quantity: 10 Units

Specifications for Variant SKU: NV104C-4-2 Parker | 10 |
Series: NV104C Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Special Properties: Valved
Parker’s all brass needle valves have metal-to-metal seats with fine thread screwdown. The specially formulated low temperature seal remains elastic to temperatures as low as -40°F (-40° C).
Product Features:
  • Extruded Brass Body & Stem
  • Low Temperature Seal
  • Metal-to-Metal Seal
  • Pin Handle
  • Pre-applied Vibra-Seal thread sealant available
Compatible Fluids:
  • Compressed air, water, industrial fluids
  • Other fluids: please contact division.
Specification:
Temperature Range:
  • -40° to +175° F (-40° to +79.4° C)
  • Humidifier Valve Kit & Self Piercing Humidifier Kit: -30° to +250° F (-34.4° to +121.1° C)
  • NV311P/NV312P: 0° to +150° F (-17.7° to +65.5° C)
Pressure Range:
  • Up to 150 PSI (10.3 bar)
Part Number Tube Size Pipe Thread H L M N
NV104C-4-2* 1/4" 1/8" 1.50" 1.54" .88" .67"
NV104CA-4-2* 1/4" 1/8" 1.50" 1.49" .77" .66"
NV104C-4-4 1/4" 1/4" 1.38" 1.80" .93" .75"
NV104C-5-2* 5/16" 1/8" 1.50" 1.63" .88" .68"
NV104C-6-4 3/8" 1/4" 1.38" 1.76" .94" .81"

*Provided with Pin Handle
