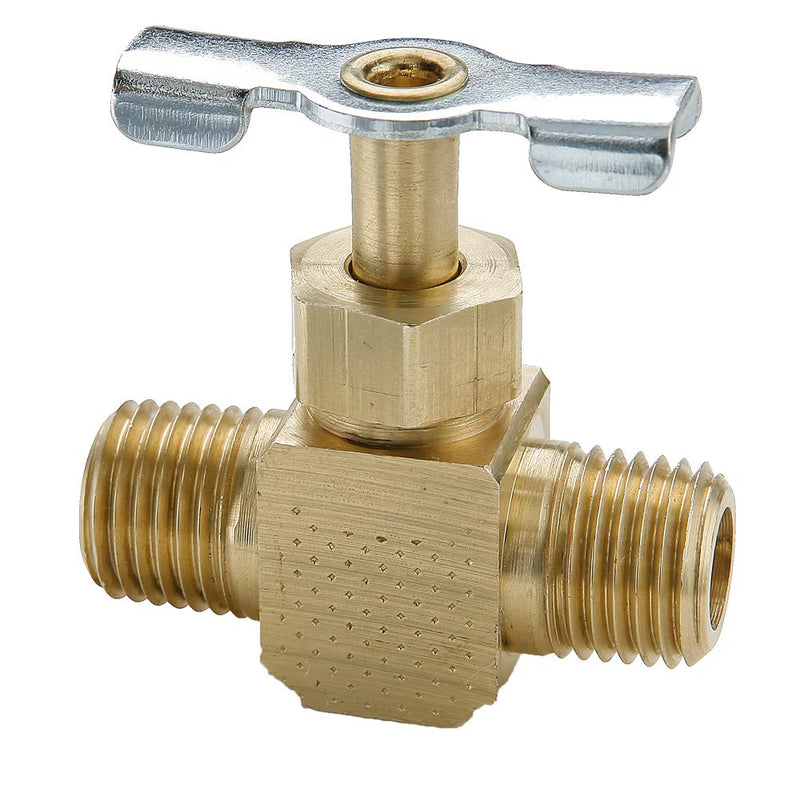

NV107P-2 by Parker | Needle Valve | 1/8" Male Pipe Thread x 1/8" Male Pipe Thread | 1.50" Length | Straight | Brass | Pack of 10

Save $93.51

$233.78

$233.78 - $233.78

$233.78

$140.27

$140.27 - $140.27

$140.27

by Parker Hannifin
Needle Valves:Needle Valve NV107P Male Pipe to Male Pipe

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: NV107P-2 Parker \| 10 \|
Series:	NV107P Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Valved

Specification:
Parker’s all brass needle valves have metal-to-metal seats with fine thread screwdown. The specially formulated low temperature seal remains elastic to temperatures as low as -40°F (-40° C).
Product Features:	Extruded Brass Body & Stem Low Temperature Seal Metal-to-Metal Seal Pin Handle Pre-applied Vibra-Seal thread sealant available
Compatible Fluids:	Compressed air, water, industrial fluids Other fluids: please contact division.
Temperature Range:	-40° to +175° F (-40° to +79.4° C) Humidifier Valve Kit & Self Piercing Humidifier Kit: -30° to +250° F (-34.4° to +121.1° C) NV311P/NV312P: 0° to +150° F (-17.7° to +65.5° C)
Pressure Range:	Up to 150 PSI (10.3 bar)


Part Number	Pipe Thread	H	L	M
NV107P-2*	1/8"	1.50"	1.35"	1.25"
NV107P-4	1/4"	1.38"	1.54"	1.65"

*Provided with Pin Handle
