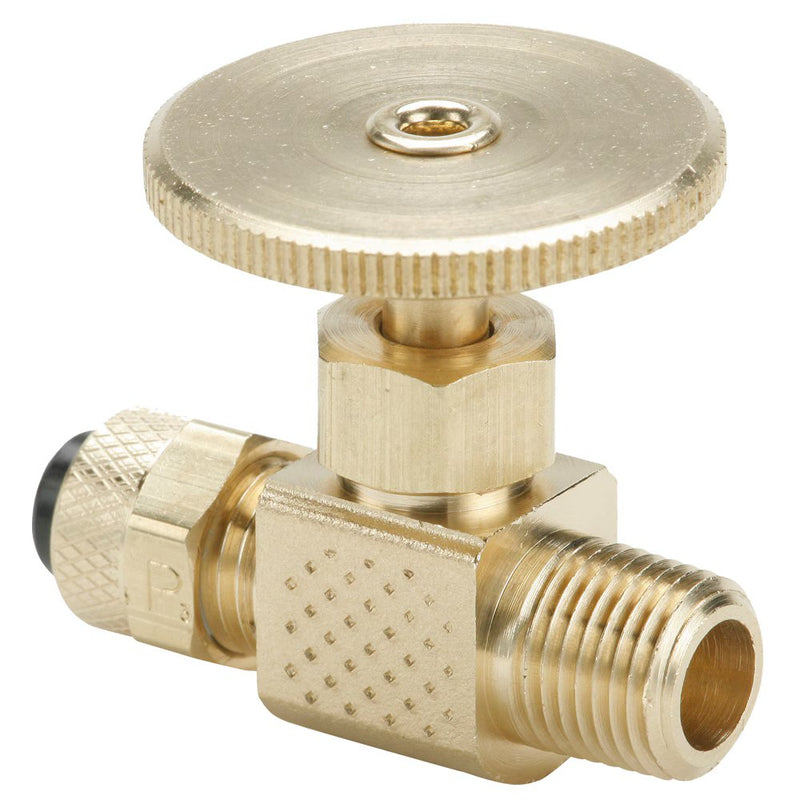

NV311P-6-4 by Parker | Needle Valve | 3/8" Poly-Tite x 1/4" Male Pipe Thread | Straight | Brass | Pack of 10

Save $40.51

$494.78

$494.78 - $494.78

$494.78

$454.27

$454.27 - $454.27

$454.27

by Parker Hannifin
Needle Valves:Needle Valve NV311P Poly-Tite to Male Pipe

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: NV311P-6-4 Parker \| 10 \|
Series:	NV311P Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Valved

Specification:
Parker’s all brass needle valves have metal-to-metal seats with fine thread screwdown. The specially formulated low temperature seal remains elastic to temperatures as low as -40°F (-40° C).
Product Features:	Extruded Brass Body & Stem Low Temperature Seal Metal-to-Metal Seal Pin Handle Pre-applied Vibra-Seal thread sealant available
Compatible Fluids:	Compressed air, water, industrial fluids Other fluids: please contact division.
Temperature Range:	-40° to +175° F (-40° to +79.4° C) Humidifier Valve Kit & Self Piercing Humidifier Kit: -30° to +250° F (-34.4° to +121.1° C) NV311P/NV312P: 0° to +150° F (-17.7° to +65.5° C)
Pressure Range:	Up to 150 PSI (10.3 bar)


Part Number	Tube Size	Pipe Thread	H	L	M	N
NV311P-4-2	1/4"	1/8"	1.07"	1.17"	.50"	.63"
NV311P-4-4	1/4"	1/4"	1.07"	1.18"	.50"	.72"
NV311P-6-4	3/8"	1/4"	1.07"	1.19"	.56"	.72"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
