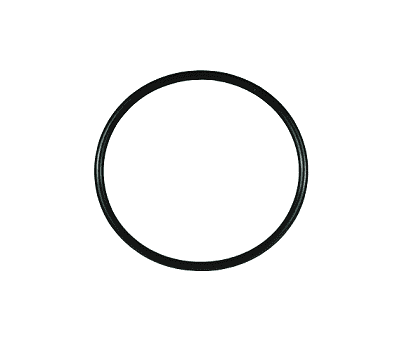

O238BU Dixon Valve 3" Figure 206 One-Piece Frac Fitting - O-Ring (Buna-N)

Save $0.17 Save $0.17
Original price $1.49
Original price $1.49 - Original price $1.49
Original price $1.49
Current price $1.32
$1.32 - $1.32
Current price $1.32

Dixon Boss LPS (Low Pressure Systems) - Dixon One-Piece Frac Fittings - Figure 206

Specifications for Variant SKU: O238BU Dixon
Seal Material(s): Buna-N/Nitrile Rubber
Application:
  • Used in the fast paced transfer of water, chemicals and sand slurry to a hydraulic fracturing site.
Features:
  • One-piece stem design eliminates the leak path common with two-piece threaded systems.
  • Interchangeable with current fittings; phase them into your operation.
  • Long lasting and dependable forged hammer nut.
  • Interchangeable with current fittings; phase them into your operation.
  • Durable and safe with reliable hose retention when crimped as specified.
    • Note: 400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with:
      • 3" size uses standard crimp ferrules
      • 4" size requires heavy duty (HD) crimp ferrules, CF400-6CSHD through CF400-16CSHD
  • 150 PSI working pressure at 70 deg. F for 6" size; 4:1 safety factor (SF).
  • 150 PSI working pressure at 70 deg. F for 8" size; 3:1 safety factor (SF).
Materials:
  • Frac fittings: machined iron to ASTM standards; all stems zinc plated.
  • Male 3", 4" and 6" NPT fittings are schedule 80 pipe; 8" NPT fittings are schedule 40 pipe; all sizes meet ASTM standards.
  • Nut: forged steel meeting AISI standards.
Part Number Size Material Description Working Pressure Weight (Lbs.)
3"
HUMF206300CS 3" Iron/Steel Male/Female Assembly 400 PSI 12.8000
HUF206300CS 3" Iron Female Fitting 400 PSI N/A
HUM206300CS 3" Iron/Steel Male Fitting (Includes Nut and O-Ring) 400 PSI 12.8000
STC35CS 3" Schedule 80 Plated Carbon Steel Male NPT Fitting - 4.4500
HU206300N 3" Forged Steel Wing Nut 2000 PSI CWP N/A
O238BU 3" Buna-N O-Ring - N/A
4"
HUMF206400CS 4" Iron/Steel Male/Female Assembly 400 PSI 27.4500
HUF206400CS 4" Iron Female Fitting 400 PSI 8.7500
HUM206400CS 4" Iron/Steel Male Fitting (Includes Nut and O-Ring) 400 PSI 18.7000
STC40CSHD 4" Heavy Duty Schedule 80 Plated Carbon Steel Male NPT Fitting 400 PSI 6.4200
HU206400N 4" Forged Steel Wing Nut 2000 PSI CWP 9.4500
O347BU 4" Buna-N O-Ring - N/A
6"
HUMF206600CS 6" Iron/Steel Male/Female Assembly 150 PSI 17.7500
HUFALL600CS 6" Iron Female Fitting 150 PSI N/A
HUM206600CS 6" Iron/Steel Male Fitting (Includes Nut and O-Ring) 150 PSI 17.7500
STC60CS 6" Schedule 80 Plated Carbon Steel Male NPT Fitting - 19.2200
HU206600N 6" Forged Steel Wing Nut 2000 PSI CWP 17.7500
O440BU 6" Buna-N O-Ring - N/A
8"
HUMF206800CS 8" Iron/Steel Male/Female Assembly 150 PSI 93.0000
HUFALL800CS 8" Iron Female Fitting 150 PSI 38.0000
HUM206800CS 8" Iron/Steel Male Fitting (Includes Nut and O-Ring) 150 PSI 55.0000
STC80CS 8" Schedule 40 Plated Carbon Steel Male NPT Fitting - N/A
HU206800N 8" Forged Steel Wing Nut 2000 PSI CWP 21.0000
O447BU 8" Buna-N O-Ring - N/A
