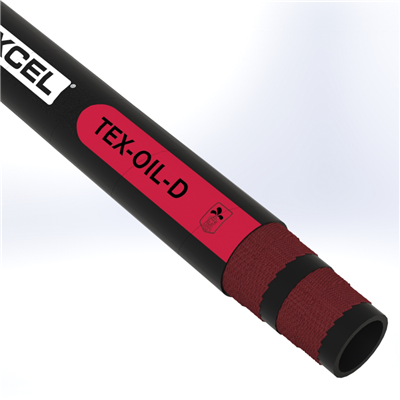

OIL-D-4.0 by Texcel | TEX-OIL-D Series | Oil Discharge Hose | 4" Hose ID | 200 PSI | Black

OIL-D-4.0 by Texcel | TEX-OIL-D Series | Oil Discharge Hose | 4" Hose ID | 200 PSI | Black

$26.12 - $2,176.50
$26.12
$23.22
$23.22 - $1,934.67
$23.22

Texcel
TEX-OIL-D Series | 200psi Oil Discharge Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: OIL-D-4.0-100 Texcel | 100 |
Series: TEX-OIL-D Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.53in
Tubing Construction: Nitrile
Cover Construction: Neoprene
Technical Data:
Description: Soft-wall discharge hose designed for use on trucks, docks and barges. Tube: Black, Nitrile, 55% aromatics (ORS)
Cover: Black, Neoprene Reinforcement: 4 high tensile tire cord plies
Safety Factor: 4:1 Temperature: -40°F to +200°F
Static Grounding: Braided copper wire runs length of hose Branding: TEXCEL® TEX-OIL-D - PETROLEUM OIL TRANSFER / DISCHARGE HOSE 200 PSI W.P.
Safety Note: Not recommend for use on reels
Part Number Hose ID Hose OD Working Pressure (psi) Lbs./ft
OIL-D-1.5 1-1/2" 2" 200 psi 0.96 lbs
OIL-D-2.0 2" 2-32/64" 200 psi 1.12 lbs
OIL-D-3.0 3" 3-32/64" 200 psi 1.89 lbs
OIL-D-4.0 4" 4-34/64" 200 psi 2.68 lbs
OIL-D-6.0 6" 6-54/64" 200 psi 5.89 lbs
OIL-D-8.0 8" 9-8/64" 200 psi 7.86 lbs
