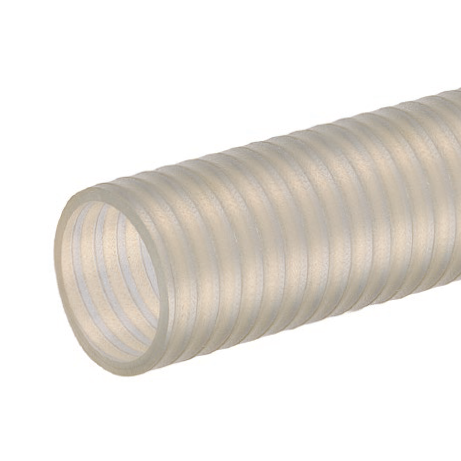

OV125X100 Kuriyama Tigerflex OV Series Heavy Duty Oil Resistant Polyurethane Suction Hose - 1-1/4" - 100ft

OV125X100 Tigerflex by Kuriyama | OV Series | Heavy Duty Oil Resistant Suction Hose | 1-1/4" ID | Polyurethane | 100ft Length

Save $264.72 Save $264.72
$926.52
$926.52 - $926.52
$926.52
$661.80
$661.80 - $661.80
$661.80

Kuriyama Tigerflex OV™ Series Oil Vac Heavy Duty Oil Resistant Polyurethane Suction Hose


Package Quantity: 100 FT

Specifications for Variant SKU: OV125X100 Kuriyama | 100 |
Brand: Tigerflex
Series: OV Series
Hose Color(s): White/Off-White
Internal Diameter: 1.25in
Outer Diameter: 1.49in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: RoHS Compliant

SPECIFICATIONS

Application: Material handling - heavy duty abrasive, Material chutes, Oil suction - heavy duty SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65.5 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Oil Resistant Polyurethane Tube - Handles most fuels and oils. Excellent resistance to gasoline, diesel, ethanol, blends (up to E30) and biodiesels (up to B100).
  • Abrasion Resistant Polyurethane Tube - Solid polyurethane tube outlasts other materials when severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
OV100X100 1" 25.4mm 1.26" 32.0mm 85 PSI 60 PSI 28 in .Hg 26 in .Hg 3" 100ft 0.23 lbs
OV125X100 1-1/4" 31.7mm 1.49" 37.8mm 85 PSI 60 PSI 28 in .Hg 24 in .Hg 5" 100ft 0.30 lbs
OV150X100 1-1/2" 38.1mm 1.76" 44.6mm 70 PSI 50 PSI 28 in .Hg 24 in .Hg 5" 100ft 0.35 lbs
OV200X100 2" 50.8mm 2.32" 59.0mm 65 PSI 45 PSI 28 in .Hg 24 in .Hg 7" 100ft 0.55 lbs
OV250X100* 2-1/2" 63.5mm 2.87" 73.0mm 65 PSI 45 PSI 28 in .Hg 24 in .Hg 8" 100ft 0.82 lbs
OV300X100* 3" 76.2mm 3.41" 86.7mm 65 PSI 40 PSI 28 in .Hg 22 in .Hg 10" 100ft 1.09 lbs
* Non-stock item, minimum order requirements may apply. Contact customer service for details. NOTE: Service life may vary depending on operating conditions and type of material being conveyed. Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
