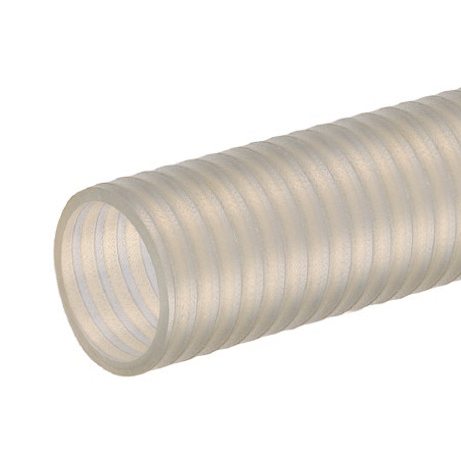

OV200X100 Kuriyama Tigerflex OV Series Heavy Duty Oil Resistant Polyurethane Suction Hose - 2" - 100ft

OV200X100 Tigerflex by Kuriyama | OV Series | Heavy Duty Oil Resistant Suction Hose | 2" ID | Polyurethane | 100ft Length

Save $129.48

$1,294.81

$1,294.81 - $1,294.81

$1,294.81

$1,165.33

$1,165.33 - $1,165.33

$1,165.33

Kuriyama Tigerflex OV™ Series Oil Vac Heavy Duty Oil Resistant Polyurethane Suction Hose

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: OV200X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	OV Series
Hose Color(s):	White/Off-White
Internal Diameter:	2in
Outer Diameter:	2.32in
Tubing Construction:	Polyurethane
Applicable Specs & Approvals:	RoHS Compliant

SPECIFICATIONS

Other Features:
Application:	Material handling - heavy duty abrasive, Material chutes, Oil suction - heavy duty	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Polyurethane
Reinforcement:	Rigid PVC Helix	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65.5 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Oil Resistant Polyurethane Tube - Handles most fuels and oils. Excellent resistance to gasoline, diesel, ethanol, blends (up to E30) and biodiesels (up to B100). Abrasion Resistant Polyurethane Tube - Solid polyurethane tube outlasts other materials when severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses. Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow. "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
OV100X100	1"	25.4mm	1.26"	32.0mm	85 PSI	60 PSI	28 in .Hg	26 in .Hg	3"	100ft	0.23 lbs
OV125X100	1-1/4"	31.7mm	1.49"	37.8mm	85 PSI	60 PSI	28 in .Hg	24 in .Hg	5"	100ft	0.30 lbs
OV150X100	1-1/2"	38.1mm	1.76"	44.6mm	70 PSI	50 PSI	28 in .Hg	24 in .Hg	5"	100ft	0.35 lbs
OV200X100	2"	50.8mm	2.32"	59.0mm	65 PSI	45 PSI	28 in .Hg	24 in .Hg	7"	100ft	0.55 lbs
OV250X100*	2-1/2"	63.5mm	2.87"	73.0mm	65 PSI	45 PSI	28 in .Hg	24 in .Hg	8"	100ft	0.82 lbs
OV300X100*	3"	76.2mm	3.41"	86.7mm	65 PSI	40 PSI	28 in .Hg	22 in .Hg	10"	100ft	1.09 lbs

* Non-stock item, minimum order requirements may apply. Contact customer service for details. NOTE: Service life may vary depending on operating conditions and type of material being conveyed. Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
