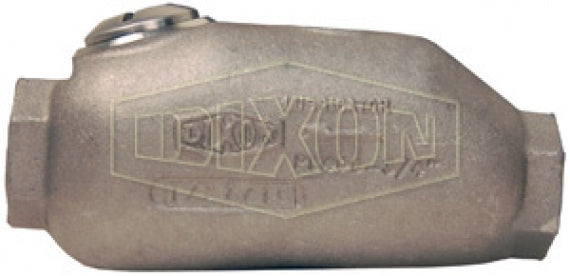

PL300 by Dixon Valve | Pneumatic In-Line Lubricator | 1/2" Female NPT | 500 PSI | 30 SCFM Air Flow | 1.4 fluid ozs. | Aluminum

Save $51.81

$129.53

$129.53 - $129.53

$129.53

$77.72

$77.72 - $77.72

$77.72

In-Line Lubricators On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F.

Specifications for Variant SKU: PL300 Dixon

Use:
Type of oil to use: any petroleum-based, non-detergent lightweight oil (SAE 10/150SSU) which will readily break up into a mist, i.e., Mobil DTE light or comparable oil. Do not use any synthetic oil or oils containing additives or solvents.
Features:
Transparent sight disc allows visual inspection of oil level. Oil flow regulated by screwdriver screw adjustment. Minimum flow rate is 30 SCFM.
Material:
Aluminum
Installation:
Installation is recommended within 25 feet of the tool to be lubricated. Refer to the arrow for proper air flow direction.
Safety Notes:
For reciprocating tools only. Not recommended for constant flow applications.

Aluminum Part Number	NPT Size	Oil Capacity	Maximum Working Pressure at Ambient Temperature (70 °F)	Air Flow at 70 PSI
PL300	1/2"	1.4 fluid ozs.	500 PSI	30 SCFM
PL400	3/4"	3.7 fluid ozs.	200 PSI	70 SCFM
PL400L	3/4"	11.0 fluid ozs.	300 PSI	70 SCFM
PL500	1"	16.0 fluid ozs.	250 PSI	100 SCFM

Replacement Parts

Part Number	Diagram Part	Description
851661	A	Oil Adjustment Valve Assembly
452531	B	Valve Gasket
452525	C	Fill Plug
700013-214	D	Fill Plug O-Ring
452532	E	Sight Disk
700013-016	F	Sight Disk Seal
452533	G	Sight Disk Lock Nut

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
