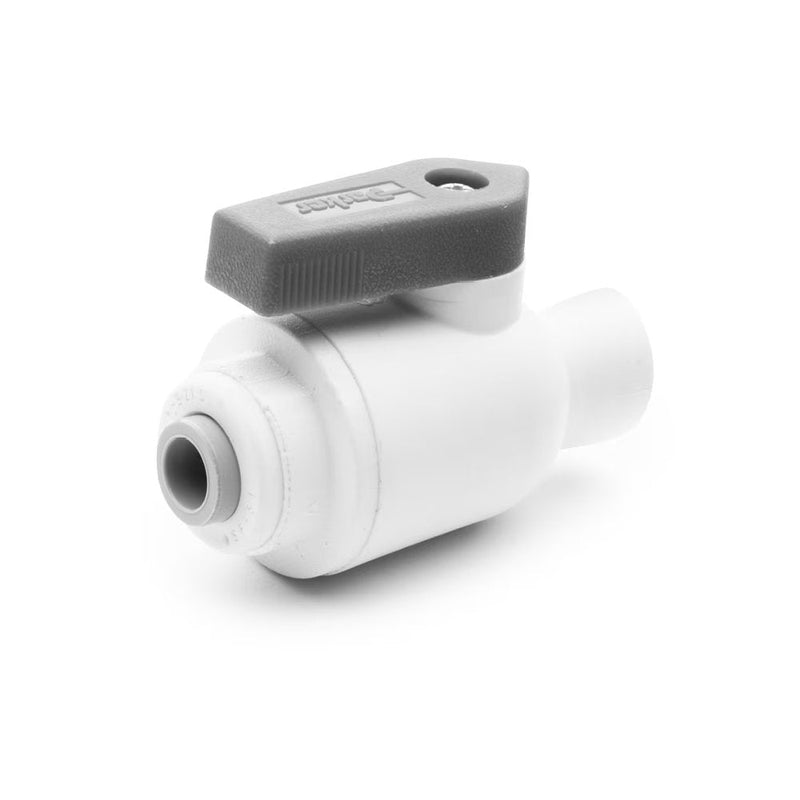

PP4VFC4-MG by Parker | TrueSeal™ Ball Valve | 1/4" Push-to-Connect x 1/4" Female NPTF Thread | 2.27" Length | Straight | White | Polypropylene

Save $4.05

$10.13

$10.13 - $10.13

$10.13

$6.08

$6.08 - $6.08

$6.08

by Parker Hannifin
Ball Valves Polypropylene:Valve Female Connector

Quantity

Specifications for Variant SKU: PP4VFC4-MG Parker
Brand:	TrueSeal™
Series:	VFC Series
Shape (Orientation):	Straight
Material(s):	Polypropylene
Seal Material(s):	EPDM
Special Properties:	Food Grade, Corrosion Resistance, Filtration, Valved

Specification:
Product Features:	Wide chemical acceptance range Bi-directional flow maximizes productivity Full flow reduces pressure drop across valve EPDM Seals – LIQUIfit, TrueSeal, and Par-barb Nitrile Seals – Fast and Tite Push-in and barbed connections Meets FDA and NSF/ANSI 51 requirements for food contact LIQUIfit, Par-Barb, and TrueSeal meet NSF/ANSI 61 requirements
Advantages:	Reduce costs – Built in LIQUIfit, TrueSeal and Par-Barb connections eliminates the need for a secondary fitting. Save Space – Low-profile design allows for easy assembly and access where space is a concern.
Type:	LFPP – LIQUIfit PP – TrueSeal PBPP – Par-Barb FTPPB - Fast and Tite
Temperature Range:	35° to +200° F (+1.7° to +93.3° C)
Pressure Range:	Up to 150 PSI (10.3 bar)


Part Number	Nom. Tube OD	NPTF Thread Size	A	B	C	D	ØE Thru Hole Min
PP4VFC2-MG	1/4"	1/8"	2.04"	1.21"	1.4"	.5"	.19"
PP4VFC4-MG	1/4"	1/4"	2.27"	1.21"	1.4"	.5"	.19"
PP4VFC6-MG	1/4"	3/8"	2.40"	1.21"	1.4"	.5"	.19"
PP6VFC2-MG	3/8"	1/8"	2.15"	1.32"	1.4"	.5"	.25"
PP6VFC4-MG	3/8"	1/4"	2.38"	1.32"	1.4"	.5"	.25"
PP6VFC6-MG	3/8"	3/8"	2.51"	1.32"	1.4"	.5"	.25"
