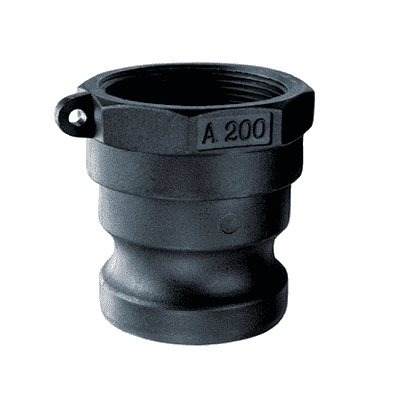

PPA100 by Kuriyama | Quick-Acting Coupling | Part A | 1" Male Adapter x 1" Female NPT | Polypropylene

PPA100 by Kuriyama | Quick-Acting Coupling | Part A | 1" Male Adapter x 1" Female NPT | Polypropylene

Save $0.86 Save $0.86
$3.00
$3.00 - $3.00
$3.00
$2.14
$2.14 - $2.14
$2.14

Kuriyama Couplings™ - Quick-Acting Couplings - Part A - Male Adapter x Female NPT - Polypropylene

Specifications for Variant SKU: PPA100 Kuriyama
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 1in Male Cam & Groove, 1in Female NPT
Material(s): Polypropylene
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Polypropylene material is glass-filled for added strength and durability.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • All 4" size female couplers are supplied with three locking handles to provide added stability.
Materials:
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • EPDM gaskets.
Part Number Size Weight (Lbs.)
PPA050 1/2 x 1/2" 0.04 lbs
PPA075 3/4" x 3/4" 0.05 lbs.
PPA100 1" x 1" 0.05 lbs.
PPA125 1-1/4" x 1-1/4" 0.10 lbs.
PPA150 1-1/2" x 1-1/2" 0.14 lbs.
PPA200 2" x 2" 0.19 lbs.
PPA300 3" x 3" 0.48 lbs.
PPA400 4" x 4" 1.02 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
