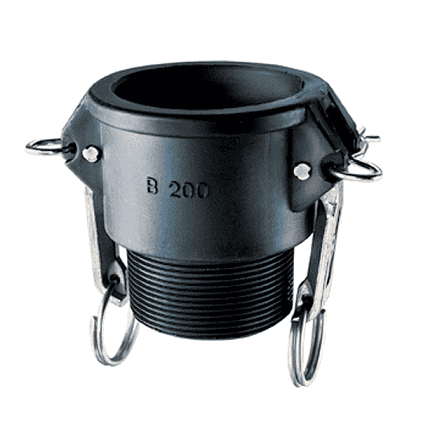

PPB200 by Kuriyama | Quick-Acting Coupling | Part B | 2" Female Coupler x 2" Male NPT | Polypropylene

Name: PPB200 by Kuriyama | Quick-Acting Coupling | Part B | 2" Female Coupler x 2" Male NPT | Polypropylene
Brand: Kuriyama
SKU: PPB200 Kuriyama
Price: 11.28 USD
Availability: InStock

Save $4.51

$15.79

$15.79 - $15.79

$15.79

$11.28

$11.28 - $11.28

$11.28

Kuriyama Couplings™ - Quick-Acting Couplings - Part B - Female Coupler x Male NPT - 316 Polypropylene

Specifications for Variant SKU: PPB200 Kuriyama
Shape (Orientation):	Straight
Cam Type:	Type B
Ends Configuration:	2in Female Cam & Groove, 2in Male NPT
Material(s):	Polypropylene, 304 Stainless Steel
Seal Material(s):	EPDM

Applications:
Agriculture, Chemicals/Petroleum, Construction, Material Handling, Irrigation, Fracking For use with Kuriyama Hoses
Features:
All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability. 1/2" x 1/2" are not specified under Mil Specs. Polypropylene material is glass-filled for added strength and durability. Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2". All 4" size female couplers are supplied with three locking handles to provide added stability.
Materials:
Type 304 stainless steel handles. Type 304 stainless steel handle pins. Type 304 stainless steel pull rings. Type 304 stainless steel safety clips. EPDM gaskets.

Part Number	Size	Weight (Lbs.)
PPB050	1/2 x 1/2"	0.17 lbs
PPB075	3/4" x 3/4"	0.18 lbs.
PPB100	1" x 1"	0.26 lbs.
PPB125	1-1/4" x 1-1/4"	0.4 lbs.
PPB150	1-1/2" x 1-1/2"	0.47 lbs.
PPB200	2" x 2"	0.49 lbs.
PPB300	3" x 3"	1.17 lbs.
PPB400	4" x 4"	1.44 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
