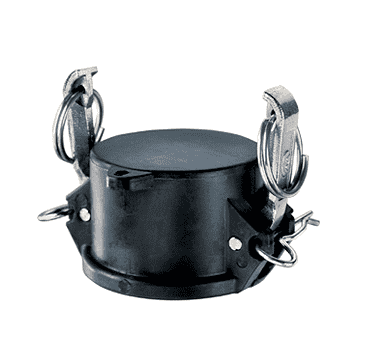

PPDC100 by Kuriyama | Quick-Acting Coupling | Part DC | 1" Dust Cap | Polypropylene

PPDC100 by Kuriyama | Quick-Acting Coupling | Part DC | 1" Dust Cap | Polypropylene

Save $2.34 Save $2.34
$8.20
$8.20 - $8.20
$8.20
$5.86
$5.86 - $5.86
$5.86

Kuriyama Couplings™ - Quick-Acting Couplings - Part DC - Dust Cap - Polypropylene

Specifications for Variant SKU: PPDC100 Kuriyama
Cam Type: Type DC
Ends Configuration: 1in Female Cam & Groove
Material(s): Polypropylene
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Polypropylene material is glass-filled for added strength and durability.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • All 4" size female couplers are supplied with three locking handles to provide added stability.
Materials:
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • EPDM gaskets.
Part Number Size Weight (Lbs.)
PPDC050 1/2" 0.16 lbs
PPDC075 3/4" 0.17 lbs.
PPDC100 1" 0.24 lbs.
PPDC125 1-1/4" 0.42 lbs.
PPDC150 1-1/2" 0.47 lbs.
PPDC200 2" 0.5 lbs.
PPDC300 3" 1.06 lbs.
PPDC400 4" 1.11 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
