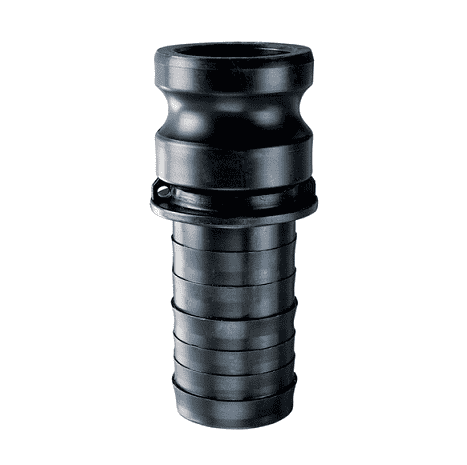

PPE100 by Kuriyama | Quick-Acting Coupling | Part E | 1" Male Adapter x 1" Hose Shank | Polypropylene

PPE100 by Kuriyama | Quick-Acting Coupling | Part E | 1" Male Adapter x 1" Hose Shank | Polypropylene

Save $0.95 Save $0.95
$3.32
$3.32 - $3.32
$3.32
$2.37
$2.37 - $2.37
$2.37

Kuriyama Couplings™ - Quick-Acting Couplings - Part E - Male Adapter x Hose Shank - Polypropylene

Specifications for Variant SKU: PPE100 Kuriyama
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 1in Male Cam & Groove, 1in Hose Barb
Material(s): Polypropylene
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Polypropylene material is glass-filled for added strength and durability.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • All 4" size female couplers are supplied with three locking handles to provide added stability.
Materials:
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • EPDM gaskets.
Part Number Size Weight (Lbs.)
PPE050 1/2 x 1/2" 0.03 lbs
PPE075 3/4" x 3/4" 0.06 lbs.
PPE100 1" x 1" 0.08 lbs.
PPE125 1-1/4" x 1-1/4" 0.15 lbs.
PPE150 1-1/2" x 1-1/2" 0.17 lbs.
PPE200 2" x 2" 0.3 lbs.
PPE300 3" x 3" 0.76 lbs.
PPE400 4" x 4" 1 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
