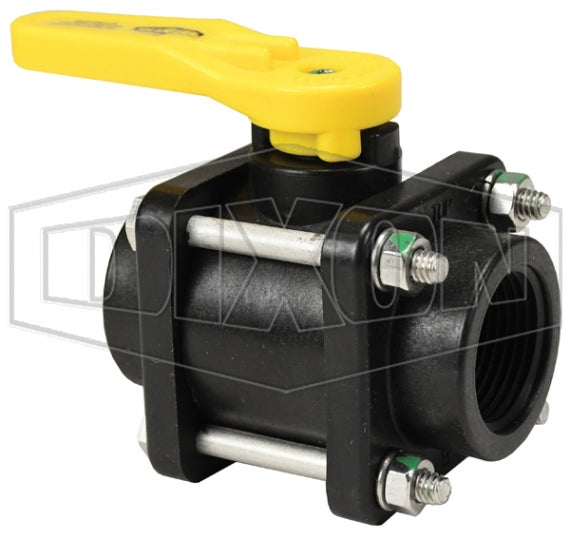

PV200 by Dixon Valve | 4-Bolt Ball Valve | Standard Port | 2" Female NPT x 2" Female NPT | Polypropylene

PV200 by Dixon Valve | 4-Bolt Ball Valve | Standard Port | 2" Female NPT x 2" Female NPT | Polypropylene

Save $1.64 Save $1.64
$61.05
$61.05 - $61.05
$61.05
$59.41
$59.41 - $59.41
$59.41

Dixon Valve & Coupling
Bolted Ball Valve | Polypropylene

FDA approved material.
Specifications for Variant SKU: PV200 Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Female NPT, 2in Female NPT, Some Ends Match
Material(s): Polypropylene
Seal Material(s): EPDM
Materials:
  • Chemically-resistant, reinforced polypropylene.
  • PTFE ball seat.
  • EPDM O-ring body seal, FKM O-ring stem seal.
  • 304 stainless steel nuts and bolts.
Specifications:
  • Pressure rating:
    - 1/2" - 3" is rated to 125 PSI at 70°F (21°C)
    - 4" is rated to 90 PSI at 70°F (21°C)
Approvals:
  • FDA approved material.
Part Number Number of Bolts Female NPT x Female NPT Port
PVFP50 4-Bolt 1/2" Full
PVFP75 4-Bolt 3/4" Full
PVFP100 4-Bolt 1" Full
PVFP150 4-Bolt 1-1/2" Full
PV100 4-Bolt 1" Standard
PV200 4-Bolt 2" Standard

PVFP200 6-Bolt 2" Full
PVFP300 6-Bolt 3" Full

PVFP400 8-Bolt 4" Full
