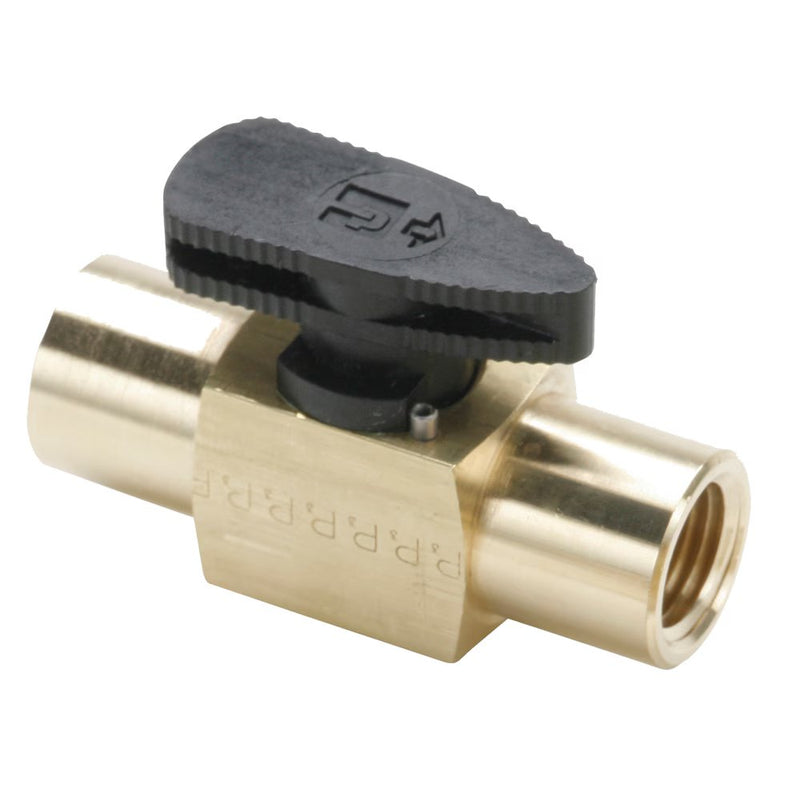

PV609-4 by Parker | Plug Valve | 1/8" Female Pipe Thread | 2.10" Length | Straight | Brass | Pack of 10

Save $26.09

$318.22

$318.22 - $318.22

$318.22

$292.13

$292.13 - $292.13

$292.13

by Parker Hannifin
Plug Valves Series PV:Female Pipe to Female Pipe Plug Valve PV609

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: PV609-4 Parker \| 10 \|
Series:	PV609 Series
Shape (Orientation):	Straight
Material(s):	Brass, Acetal
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Valved

Specification:
Product Features:	Extruded Brass Body One Piece Stem/Handle Acetal Stem/Handle 100% Leak Tested
Style:	PV-Plug Valve
Type:	607-Male/Male 608-Male/Female 609-Female/Female
Temperature Range:	-40° to +175° F (-40° to +79.4° C)
Pressure Range:	Up to 250 PSI (17.2 bar)


Part Number	Pipe Thread	H	L	M	N	N1	Flow Diameter D
PV609-2	1/8"	.67"	1.34"	1.68"	1.38"	.51"	.200"
PV609-4	1/4"	.67"	1.34"	2.10"	1.38"	.51"	.200"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
