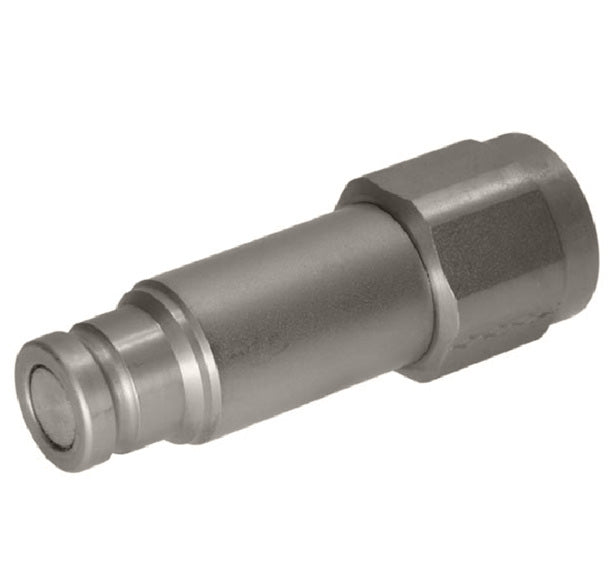

QC-CPFF12-M-08N by Couplamatic | Hydraulic Quick Coupler | CPFF Series | Connect Under Pressure Flat Face | 1/2" Body Size x 1/2-14 Female NPT | Plug | Zinc Nickel Plated

Save $8.08

$72.69

$72.69 - $72.69

$72.69

$64.61

$64.61 - $64.61

$64.61

Couplamatic Inc
Hydraulic Quick Couplers - CPFF Series - Connect Under Pressure Flat Face Couplers

Quantity

Specifications for Variant SKU: QC-CPFF12-M-08N Couplamatic
Series:	CPFF Series
Shape (Orientation):	Straight

Features:
CPFF Series Flat Face Couplers are designed to connect under pressure (male half) by hand up to 5075 PSI (350 bar). Connect to the FF Series Female couplers. Prevents fluid loss during disconnection and allows minimal inclusion of contaminants during connection. Couplers have nitrile seals and are zinc nickel plated for higher corrosion resistance.
Temperature:
-40°F (-40°C) to 223°F (106°C).
Applications:
Industrial Agriculture Mining Leak Free Environments High Pressure Pulse Hammer Circuits


Part Number	Body Size	Body Size (ISO)	Coupler Gender	Thread Size	Working Pressure	Coupled Burst	Male Burst	"A" Length
QC-CPFF12-M-08N	1/2"	12	Male	1/2-14 NPT	5075 PSI	17400 PSI	21750 PSI	4.1"
QC-CPFF12-M-12N	1/2"	12	Male	3/4-14 NPT	5075 PSI	17400 PSI	21750 PSI	4.1"
QC-CPFF12-M-08S	1/2"	12	Male	3/4x16 SAE	5075 PSI	17400 PSI	21750 PSI	4.1"
QC-CPFF12-M-10S	1/2"	12	Male	7/8x14 SAE	5075 PSI	17400 PSI	21750 PSI	4.1"
QC-CPFF12-M-12S	1/2"	12	Male	1-1/16x12 SAE	5075 PSI	17400 PSI	21750 PSI	4.1"
