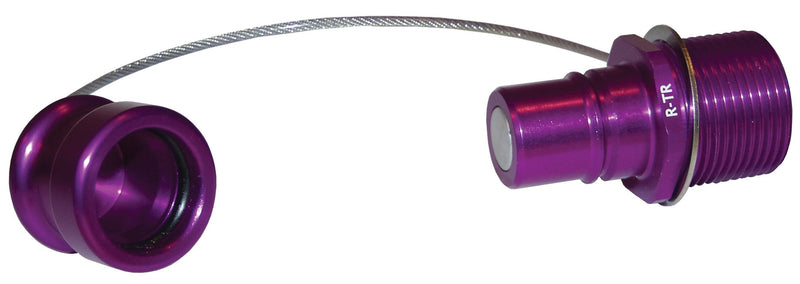

R-TR-C by Dixon Valve | FloMAX R-Series (Roll-Pin Style) | Transmission Fluid Receiver with Cap | 1.312-12 UN-2A Male Thread x 1.062-12 UN-2B Female Thread | Violet/Purple | Anodized Aluminum

R-TR-C by Dixon Valve | FloMAX R-Series (Roll-Pin Style) | Transmission Fluid Receiver with Cap | 1.312-12 UN-2A Male Thread x 1.062-12 UN-2B Female Thread | Violet/Purple | Anodized Aluminum

Save $108.57 Save $108.57
$271.42
$271.42 - $271.42
$271.42
$162.85
$162.85 - $162.85
$162.85

Dixon Valve
FloMAX R-Series (Roll-Pin Style) | Transmission Fluid Receiver

Fully compatible and interchangeable with industry standards.
Specifications for Variant SKU: R-TR-C Dixon
Brand: FloMAX
Series: R-TR Series
Shape (Orientation): Straight
Material(s): Anodized Aluminum
Features:
  • Bright Gold.
  • Standard roll-pin locking mechanism.
  • Ergonomically engineered pullback.
Construction:
  • All-metal construction.
  • Anodized aircraft grade aluminum non-wear components.
Transmission Fluid Nozzles
Part Number Description Thread Size Cross Over Part Numbers
Caterpillar® Wiggins FastFill
R-TN Transmission Fluid Nozzle 3/4" Female NPT - R13 N400R
R-TN-P Transmission Fluid Nozzle with Plug 3/4" Female NPT - - N400RP
R-TN-PLUG Transmission Fluid Nozzle Plug - - R1307 P400R
Transmission Fluid Receivers
Part Number Description Male Thread Size Female Thread Size Cross Over Part Numbers
Caterpillar® Wiggins FastFill
R-TR Transmission Fluid Receiver 1.312-12 UN-2A 1.062-12 UN-2B - R14 R400R
R-TR-C Transmission Fluid Receiver with Cap 1.312-12 UN-2A 1.062-12 UN-2B - - R400CR
R-TR-CAP Transmission Fluid Receiver Cap - - - R1405 C400R

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
