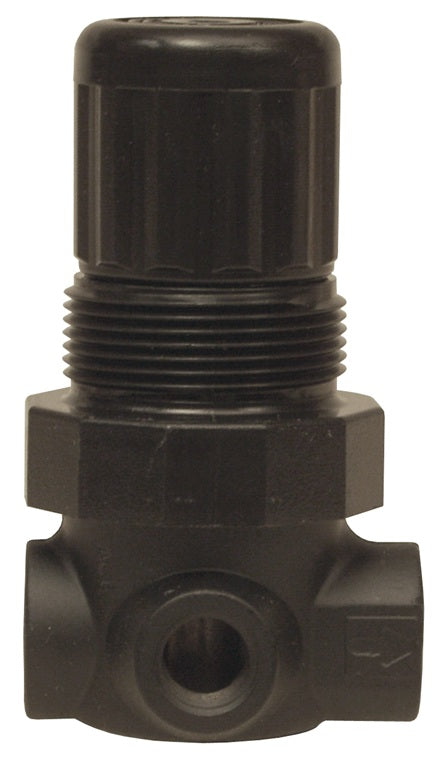

R07-100R by Dixon Valve | R07 Series 1 | Miniature Regulator | 1/8" Port Size | 14 SCFM | without Gauge | 5-100 PSI Pressure Range

R07-100R by Dixon Valve | R07 Series 1 | Miniature Regulator | 1/8" Port Size | 14 SCFM | without Gauge | 5-100 PSI Pressure Range

Save $2.23 Save $2.23
$40.26
$40.26 - $40.26
$40.26
$38.03
$38.03 - $38.03
$38.03

Dixon Valve
R07 Series 1 | Miniature Regulator

For air service only.

- Pressure range 5-100 PSI
Specifications for Variant SKU: R07-100R Dixon
Series: R07 Series 1
Special Properties: Mini/Micro Size
Features:
  • Relieving type.
  • RG models supplied with a GC620 gauge.
  • Panel nut not included.
Specifications:
  • Inlet pressure 300 PSI max.
  • Maximum temperatur e: 150°F (66°C).
  • Regulation at flows up to 22 SCFM at 100 PSIG.
  • Pressure range 5-100 PSI.
  • SCFM ratings given at 100 PSIG inlet pressure.
Dimensions:
Part Number
with Gauge		 Part Number
without Gauge		 Port Size Flow (SCFM)
R07-100RG R07-100R 1/8" 14 SCFM
R07-200RG R07-200R 1/4" 15 SCFM
