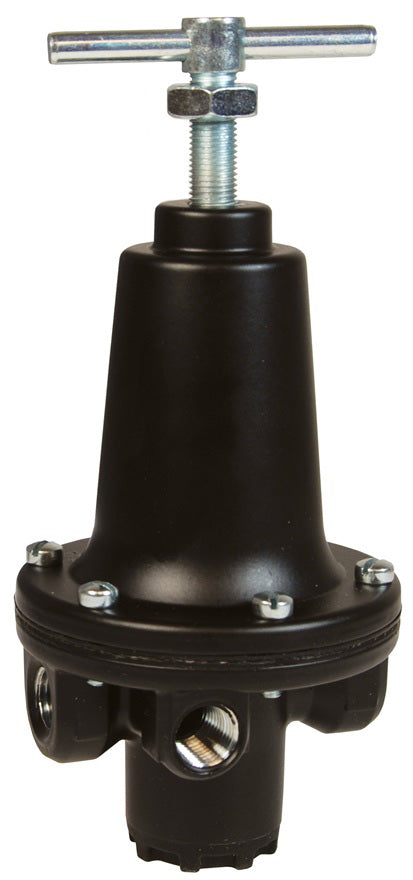

R119-12C Watts by Dixon Valve | R119-Series | High-Flow Regulator | 1-1/2" Size | 500 SCFM | without Gauge | 2 - 125 PSIG Pressure Range

Save $23.88

$282.72

$282.72 - $282.72

$282.72

$258.84

$258.84 - $258.84

$258.84

Dixon Valve
Watts | R119-Series | Standard Regulator

Pressure Range: 2 - 125 PSIG (.15 - 8.5 bar)

For air service only.

Quantity

Specifications for Variant SKU: R119-12C Dixon
Brand:	Watts
Series:	R119-Series

Features:
Zinc body Relieving type Diaphragm operated Spring adjustment mechanism T-handle design Acetal bottom plug Aluminum spring cage Uses a GC230 gauge
Specifications:
Pressure range 2 - 125 PSIG (.15 - 8.5 bar) Inlet pressure: 300 PSIG (20.4 bar) maximum Temperature range: 40°F (4°C) to 120°F (49°C) FRL's are designed for air service only, unless otherwise indicated. SCFM ratings given at 100 PSIG inlet pressure.
Dimensions:

Part Number With Gauge	Part Number Without Gauge	Size	Flow (SCFM)
R119-06CG	R119-06C	3/4"	300 SCFM
R119-08CG	R119-08C	1"	400 SCFM
R119-12CG	R119-12C	1/2"	500 SCFM
