R12-Z99 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring R134a Service Port Adapter 90° Elbow with Low Service Port | 3/4" Tube Size | Steel

R12-Z99 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring R134a Service Port Adapter 90° Elbow with Low Service Port | 3/4" Tube Size | Steel

Name: R12-Z99 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring R134a Service Port Adapter 90° Elbow with Low Service Port | 3/4" Tube Size | Steel
Brand: Danfoss/Eaton
SKU: R12-Z99 Danfoss
Price: 58.25 USD
Availability: InStock

$58.25 - $58.25

$58.25

$58.25 - $58.25

$58.25

Weatherhead by Danfoss

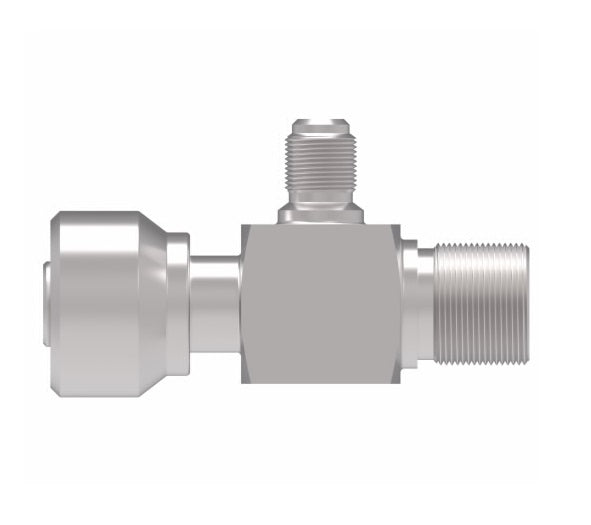

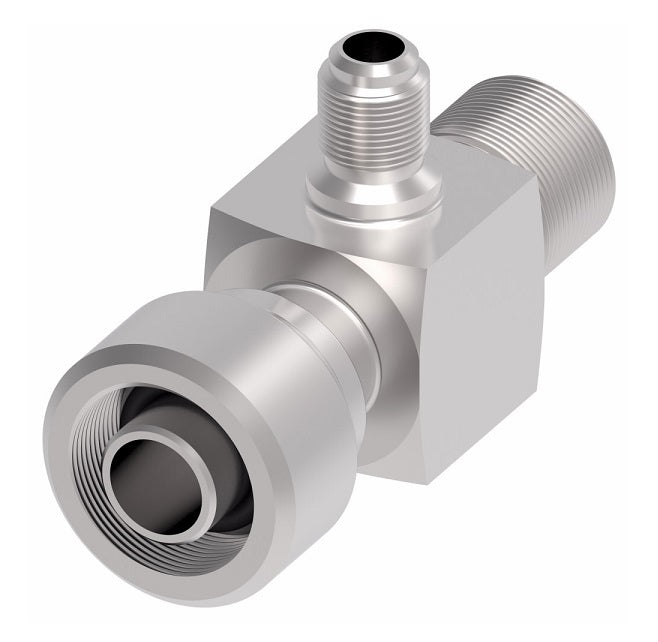

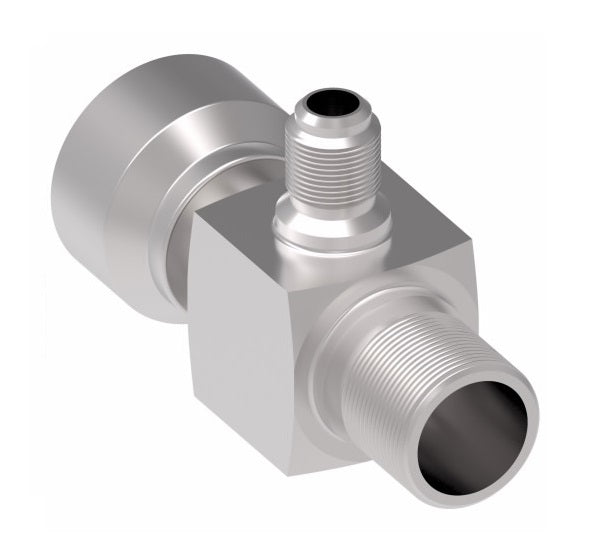

Coll-O-Crimp 757 'E' Series Adapter - Bumped Tube O-Ring R134a Service Port Adapter - 90° Elbow

Quantity

Specifications for Variant SKU: R12-Z99 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Shape (Orientation):	90 Degree
Material(s):	Steel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Tube Size	Thread Size G	Port	Length A	Drop B	Across Flats	Hex F
R12-Z97	1/2"	3/4-16	High Service Port	2.27"	1.15"	7/8"	7/8
R12-Z99	3/4"	1-1/16-16	Low Service Port	2.77"	1.39"	1-1/16"	1-1/4"

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
