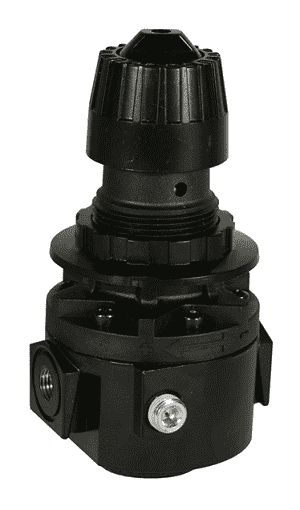

R26-02R Dixon Wilkerson 1/4" Standard Regulator without Gauge - 112 SCFM

R26-02R Dixon Valve Wilkerson 1/4" Standard Regulator without Gauge - 112 SCFM

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Wilkerson Standard Regulators On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.
Specifications for Variant SKU: R26-02R Dixon
Features:
  • 0-125 PSI adjusting range.
  • Non-rising push/pull locking adjustment knob.
  • Panel mount nut standard.
  • Excellent flow characteristics.
  • Can be installed with the adjusting knob in any position.
  • To increase regulated pressure, pull adjusting knob up and turn clockwise. To reduce pressure, turn knob counter clockwise.
  • Two 1/4" NPT gauge ports standard on models without gauge, one 1/4" NPT gauge port standard on models with gauge - can be used for additional outlet ports.
  • Models supplied without gauge use a GC230 gauge.
Part Number Size SCFM PSI Min/Max Temp Weight (Lbs.)
With Gauge
R26-03RG 3/8" 148 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 2.6000
R18-04RG 1/2" 185 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 2.5200
Without Gauge
R26-02R 1/4" 112 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 2.6600
R26-03R 3/8" 148 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 2.5800
R26-04R 1/2" 185 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 2.5000
