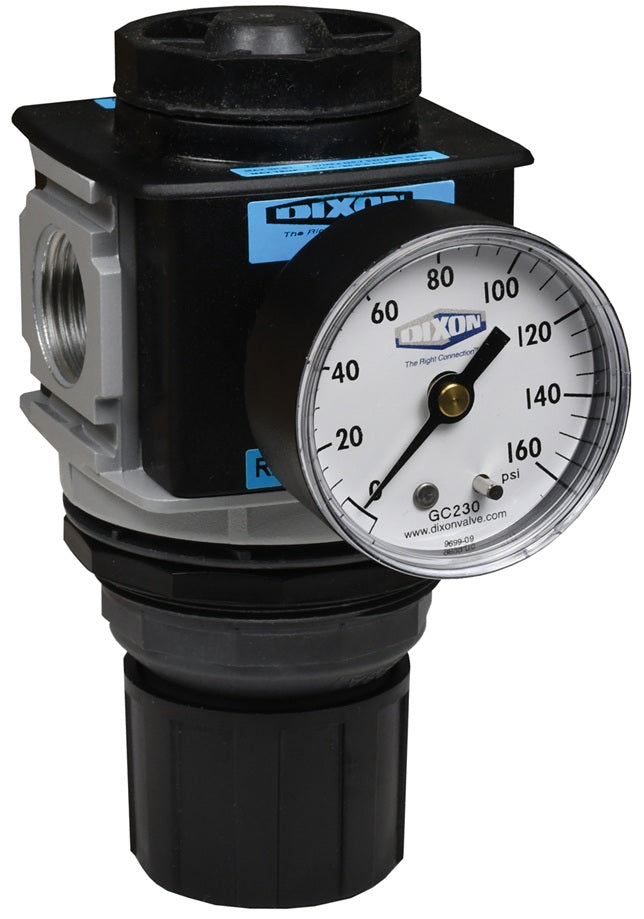

R28-03RG Wilkerson by Dixon Valve | R28-Series | Standard Regulator | 3/8" Size | 228 SCFM | with Gauge | 0-125 PSI Adjusting Range

Save $9.77

$115.77

$115.77 - $115.77

$115.77

$106.00

$106.00 - $106.00

$106.00

Dixon Valve
Wilkerson | R28-Series | Standard Regulator

0-125 PSI adjusting range.

Quantity

Specifications for Variant SKU: R28-03RG Dixon
Brand:	Wilkerson
Series:	R28-Series

Features:
0-125 PSI adjusting range. Self-relieving standard. Four adjusting pressure ranges available. To increase regulated pressure, pull adjusting knob up and turn clockwise, to reduce pressure, turn knob counter clockwise. Two 1/4" NPT gauge ports located on the front and rear faces of the body; ports may be used as additional regulated ports or for pressure gauges. Models supplied without gauge use a GC230 gauge.
Specifications:
FRL's are designed for air service only, unless otherwise indicated. Maximum operating conditions: 300 PSIG (20.7 bar) and -13°F to 125°F (-25°C to 52°C)
Dimensions:

Part Number With Gauge	Part Number Without Gauge	Size	Flow (SCFM)
R28-03RG	R28-03R	3/8"	228 SCFM
R28-04RG	R28-04R	1/2"	233 SCFM
R28-06RG	R28-06R	3/4"	233 SCFM
