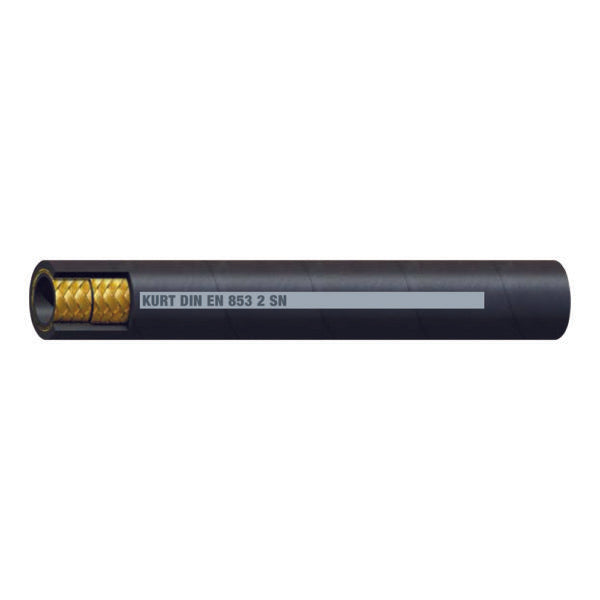

R2S-10 by Kurt Hydraulics | R2S Series | 0.625in ID x 1in ID | 3625 MAWP | 2-Wire Hydraulic Hose with Nitrile Tube and Neoprene Cover | SAE 100R2-S, DIN EN 853 2SN, Applicable MSHA Standards | Black | 220ft Reel

Save $93.87

$844.80

$844.80 - $844.80

$844.80

$750.93

$750.93 - $750.93

$750.93

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 220 Feet

Quantity

Specifications for Variant SKU: R2S-10 Kurt \| 220 \|
Series:	R2S Series
Hose Color(s):	Black
Dash Size:	-10
Internal Diameter:	0.625in
Outer Diameter:	1in
Tubing Construction:	Nitrile
Cover Construction:	Neoprene
Applicable Specs & Approvals:	SAE 100R2-S, DIN EN 853 2SN, Applicable MSHA Standards

Recommended for: High pressure hydraulic oil lines
Tube: Oil resistant synthetic rubber
Reinforcement: Two high tensile steel wire braid
Cover: Abrasion, ozone and weather resistant synthetic rubber
Meets: Flame resistant MSHA designation
Temperature Range: -40°F to +212°F (+250°F Max)

Part Number	Hose I.D. (in.)	Hose O.D. (in.)	Rated W.P. (psi)	Min. Burst (psi)	Min. Bend (in.)	Weight (Lb/Ft)
R2S-04	1/4	0.59	5,750	23,000	4	0.21
R2S-06	3/8	0.75	4,750	19,000	5	0.30
R2S-08	1/2	0.87	4,000	16,000	6	0.36
R2S-10	5/8	1.00	3,500	14,000	8	0.44
R2S-12	3/4	1.15	3,000	12,000	9.5	0.56
R2S-16	1	1.50	2,250	9,000	12	0.82
R2S-20	1-1/4	1.88	1,625	6,500	15	1.19
R2S-24	1-1/2	2.15	1,300	5,200	20	1.43
R2S-32	2	2.63	1,250	5,000	24.5	1.87

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
