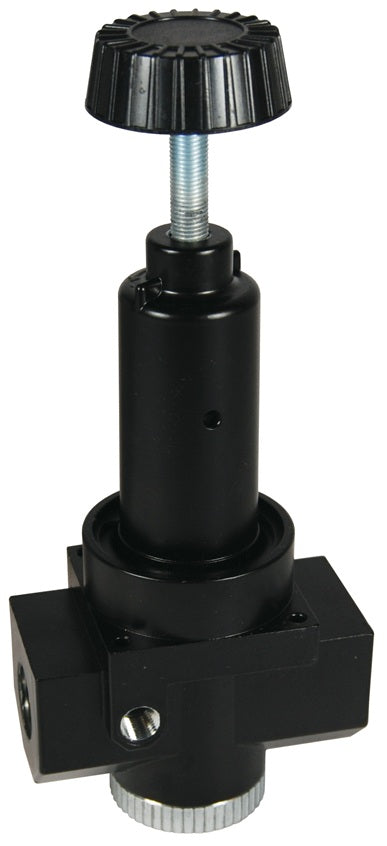

R30-06R Wilkerson by Dixon Valve | R30-Series | High Flow Regulator | 3/4" Size | 481 SCFM | without Gauge | 0-125 PSI Adjusting Range

R30-06R Wilkerson by Dixon Valve | R30-Series | High Flow Regulator | 3/4" Size | 481 SCFM | without Gauge | 0-125 PSI Adjusting Range

Save $21.86 Save $21.86
$258.90
$258.90 - $258.90
$258.90
$237.04
$237.04 - $237.04
$237.04

Dixon Valve
Wilkerson | R30-Series | High Flow Regulator

0-125 PSI adjusting range.
Specifications for Variant SKU: R30-06R Dixon
Brand: Wilkerson
Series: R30-Series
Features:
  • Self-relieving standard.
  • Piston operated.
  • Can be installed with the adjusting knob in any position.
  • To increase regulated pressure, pull adjusting knob up and turn clockwise, to reduce pressure, turn knob counter clockwise.
  • Two 1/4" NPT gauge ports standard on models without gauge, one 1/4" NPT gauge port standard on models with gauge - can be used for additional outlet ports.
  • Models supplied without gauge use a GC230 gauge.
Specifications:
  • FRL's are designed for air service only, unless otherwise indicated.
  • Maximum operating conditions: 300 PSIG (20.7 bar) and 32°F to 150°F (0°C to 66°C)
  • SCFM ratings at 100 PSIG inlet pressure
Dimensions:
Part Number
With Gauge		 Part Number
Without Gauge		 Size Flow (SCFM)
R30-06RG R30-06R 3/4" 481 SCFM
R30-08RG R30-08R 1" 500 SCFM
